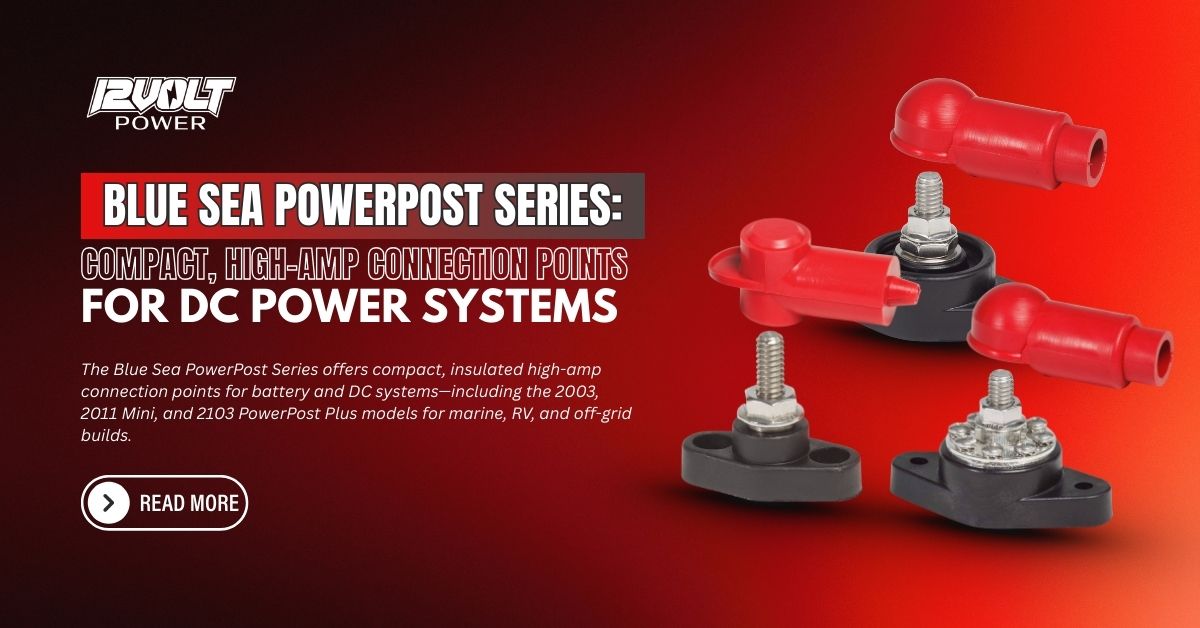

Blue Sea PowerPost Series: Compact, High-Amp Connection Points for DC Power Systems

Clean, secure termination points are critical in any DC electrical system—especially where high-amperage cables must be joined without clutter or excessive hardware. The Blue Sea PowerPost series provides a compact, insulated solution for terminating multiple conductors safely and efficiently.

Designed for marine, RV, and off-grid systems, PowerPosts offer a single, robust stud that simplifies cable management while maintaining high current capacity and safety.

As part of the trusted Blue Sea Systems lineup, these connection points are engineered for durability, conductivity, and long-term reliability.

What Is a PowerPost and When Should You Use One?

A PowerPost serves as a single-stud termination point for multiple battery lugs or large DC conductors. It’s ideal when:

• You need to consolidate multiple cables on one connection
• Space is limited and a traditional Blue Sea bus bar won’t fit
• You want a clean, insulated connection point near batteries or distribution equipment

PowerPosts are commonly used between batteries, inverters, chargers, fuse blocks, and DC distribution panels.

Blue Sea 2003 PowerPost – 3/8″-16 Stud

The Blue Sea 2003 PowerPost is designed for high-amperage cable terminations using a single insulated stainless steel stud.

👉 Product page: https://www.12voltpower.com/product/blue-sea-2003-powerpost-stud/

Key features:

• 3/8″ × 7/8″ stainless steel stud
• Insulated protective cap
• Ideal for terminating multiple large battery lugs
• Secure connection for high-amperage cables
• Base material: PBT UL94 V0
• Weight: 0.27 lbs

This model is well-suited for main battery connections, inverter feeds, or charger inputs where multiple large cables must meet at one point.

Blue Sea 2011 Mini PowerPost – 1/4″-20 Stud

For tighter spaces and smaller cable sizes, the Blue Sea 2011 Mini PowerPost offers the same reliability in a more compact form.

👉 Product page: https://www.12voltpower.com/product/blue-sea-2011-mini-powerpost/

Key features:

• 1/4″ × 3/4″ stainless steel stud
• Compact footprint for tight installations
• Insulated design for safety
• Ideal for terminating multiple medium-gauge conductors
• Base material: PBT UL94 V0
• System voltage: 12V / 24V
• Weight: 0.05 lbs

The Mini PowerPost is perfect for auxiliary circuits, secondary battery banks, and smaller DC subsystems where space efficiency matters.

Blue Sea 2103 PowerPost Plus – 3/8″-16 Stud with Auxiliary Connections

The Blue Sea 2103 PowerPost Plus expands on the standard PowerPost concept by adding auxiliary screw terminals for smaller wires—making it a space-saving alternative to a traditional busbar.

👉 Product page: https://www.12voltpower.com/product/blue-sea-2103-powerpost-plus/

Key features:

• 3/8″ × 3/4″ main stud for high-amperage cables
• (8) #8 screws for smaller wire connections
• 150-amp internal bus for auxiliary circuits
• Ideal where a traditional Blue Sea fuse block or busbar won’t fit
• Base material: Black Nylon 8231 GHS
• System voltage: 12V / 24V
• Dimensions: 3.3 × 1.75 × 2.0 in
• Weight: 0.34 lbs

This model is especially useful for compact power distribution near batteries, inverters, or DC panels.

Choosing the Right PowerPost for Your System

Each PowerPost serves a different role depending on system size and layout:

• 2003 PowerPost → Best for multiple large battery cables on one stud
• 2011 Mini PowerPost → Ideal for smaller conductors and tight spaces
• 2103 PowerPost Plus → Combines high-amp termination with small-wire distribution

All three models integrate cleanly with other Blue Sea Systems components for a professional, serviceable DC layout.

Why Buy Blue Sea Systems from 12VoltPower.com

When building or upgrading DC power systems, component quality matters. 12VoltPower.com is a trusted source for genuine Blue Sea Systems products—from PowerPosts and busbars to fuse blocks, meters, and complete distribution solutions.

You get authentic hardware, accurate specifications, and fast U.S. shipping backed by knowledgeable technical support.

👉 Explore Blue Sea Systems products: https://www.12voltpower.com/product-category/brands/blue-sea-systems/
