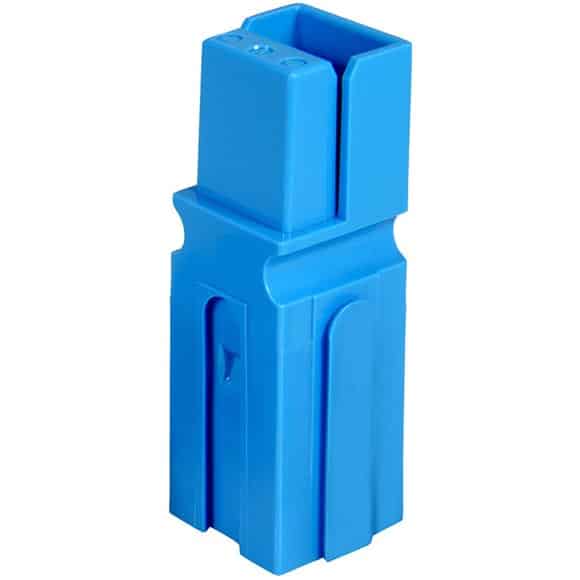

Anderson Power 1327G8 POWERPOLE® 15-45 Standard Connector Housing – Blue

$0.50

Loose piece Powerpole PP15-45 Series connector housing. Original housing design with an open interface. Versatile connector meets a wide range of power connection needs. The Powerpole connector combines high quality materials with a cost-effective and innovative design for powerful versatility.

SKU: 1327G8-BK Categories: , , , , ,
Range Discount
1 - 99 $0.50
100 - 249 $0.45
250 - 499 $0.40
500 - 999 $0.35
1000 - 2499 $0.33
2500 - 9999 $0.30
10000 + $0.27

PP15/45 series are the smallest Powerpole® housings. They can be used for wire-to-wire or wire-to-board applications. Wire sizes from 20 to 10 AWG offer power capabilities up to 55 amps per pole and 600V max. Dovetail track gives you the option to stack multiple housings vertically or horizontally.

High Power Density: Up to 55 amps in a small and compact footprint

Wire-to-Wire & Wire-to-Board Configurations: Wire & PCB contacts can be used in the same housings

Flat-Wiping Contact System: Wiping action cleans surface during connection/disconnection

Interchangeable Genderless Design: Quick and easy assembly

Silver Plated Contacts: Offers greatest longevity when used in high power, elevated temperature applications. Tin versions are also available.

Color Coded Housings: For easy identification and polarity protection

Molded-In Dovetails: Secure individual connectors together and can be stacked vertically and horizantally

UL94 V-0 Housing Material: Meets strict flammability ratings

Specification Heading Specification Detail
Weight 0 lbs
Current Rating Up to 55A
Voltage Rating 600V
Housing Material Polycarbonate
Housing Flammability Rating UL94 V-0
Wire Size Range 20 to 10AWG
Max Wire Insulation Diameter 0.175"
Operating Temperature Range -4°F to 221°F
