- Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
- Clear insulating cover with label recesses accepts Small Format Labels
- Spare fuse holder in cover
- Accepts ring or snap fork type terminals
- Includes two terminal block jumpers

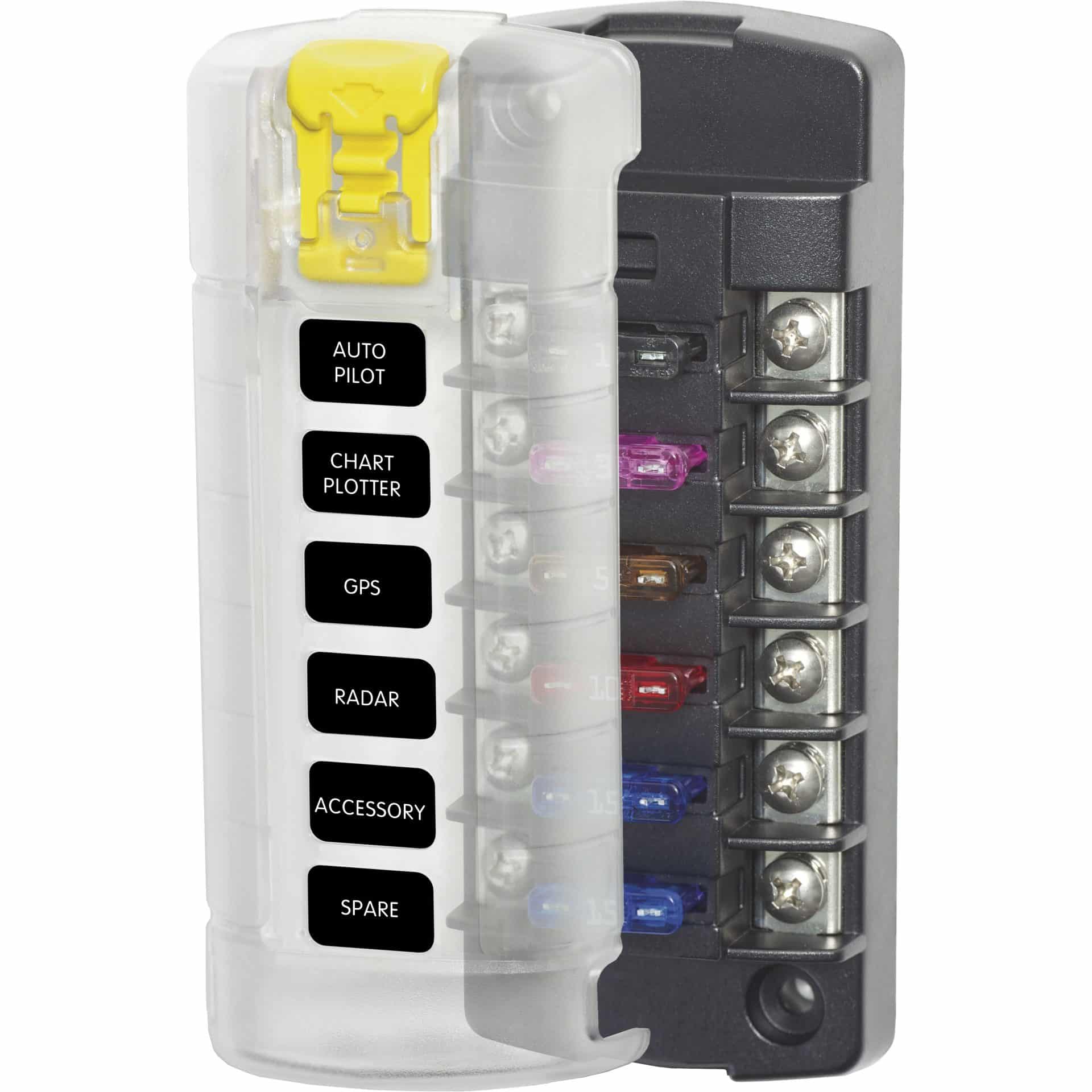

Blue Sea 5035 ST Blade Fuse Block – 6 Independent Circuits with Cover
$31.99
Independent 6 circuit ATC/ATO blade fuse block with protective cover. Consolidates up to six independently-sourced branch circuits in one compact fuse block. Can be used in place of multiple in-line fuse holders, making your connections neater and safer. Terminal block jumpers can be used to make common circuits for specific applications.
| Specification Heading | Specification Detail |
| Number of Circuit | 6 |
| Maximum Amperage | 30A per Circuit ( 40A per jumped circuit group) |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 with Captive Star Lockwasher |
