$21.99

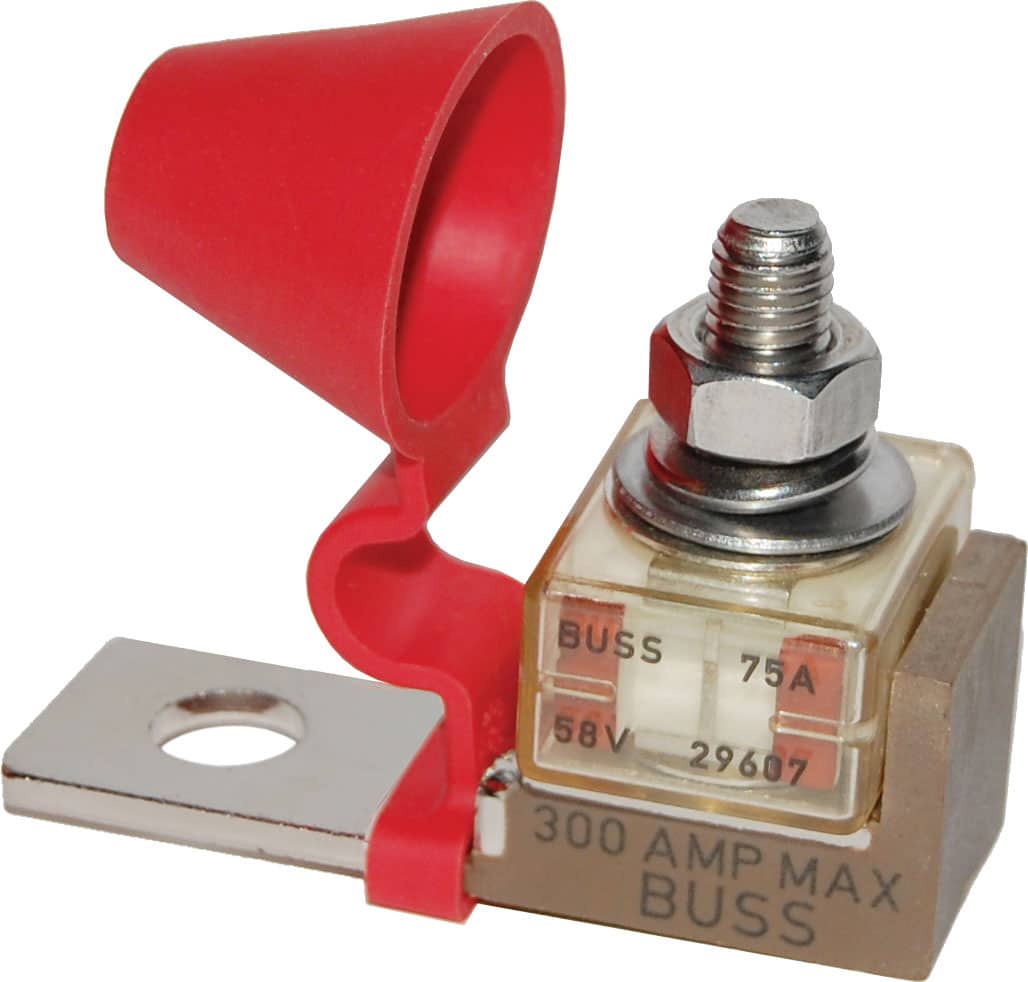

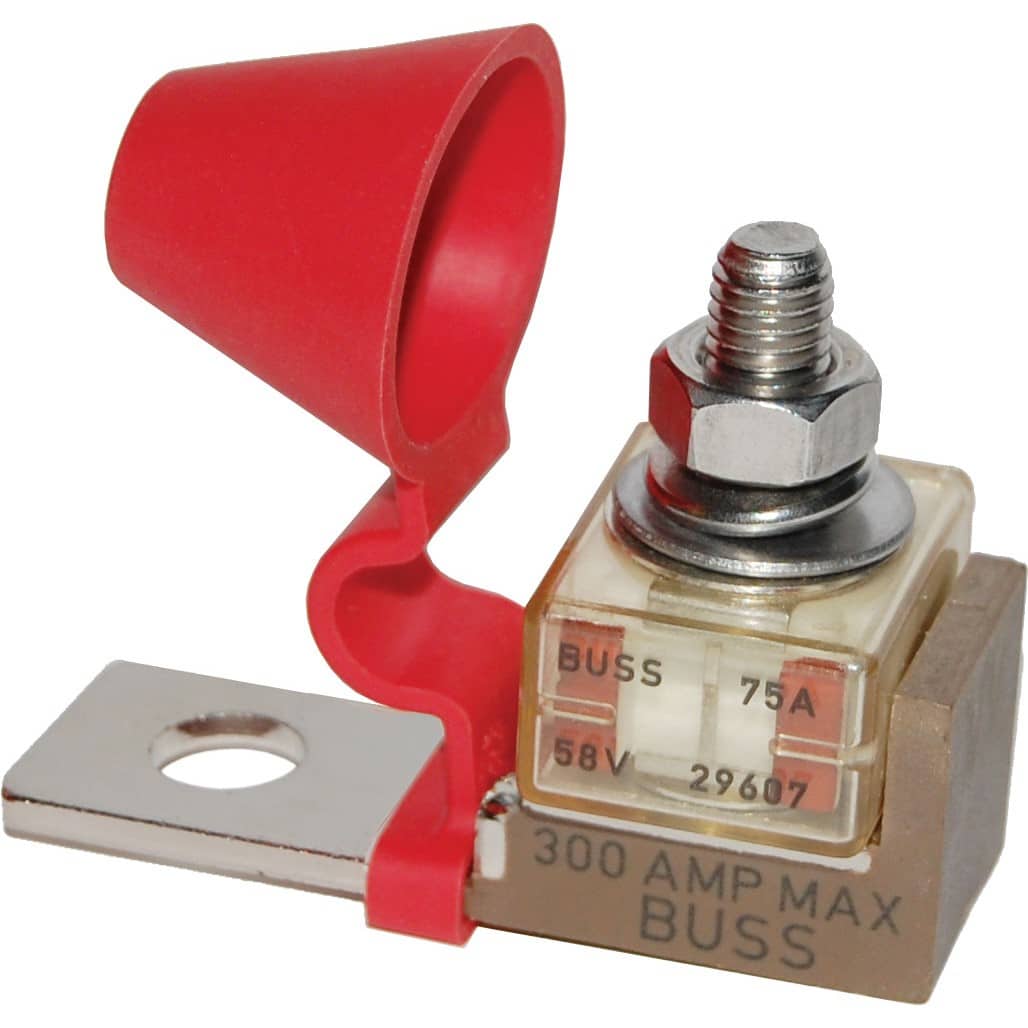

Compact, high-amp rated MRBF/CBBF fuse holder. Designed to mount direct to batteries with 3/8″ posts for easy installation. Rated for 300A maximum.
SKU: 5191-BSS
Categories: Blue Sea Systems, Brands, Circuit Protection, DC Power Products, Fuse Blocks, MRBF Fuse Block
Description
- Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
- Provides high current protection in tight space constraints
- Ignition protected when used with Blue Sea Systems’ MRBF Terminal Fuse
- Isolated stud design uses standard M8 hardware and permits stacking of terminals
- Insulating cap prevents accidental shorts
- Accepts 5∕16″ ring terminals

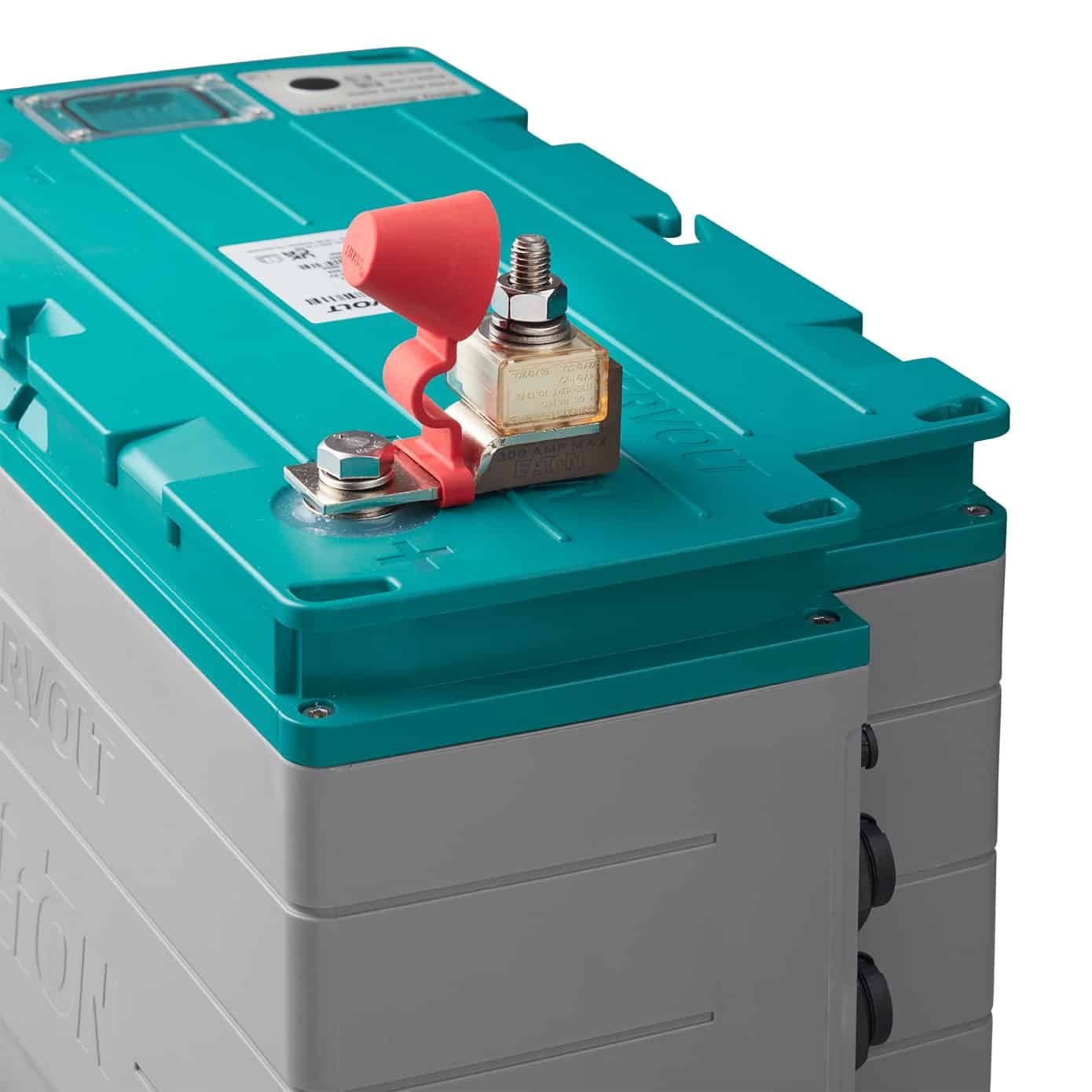

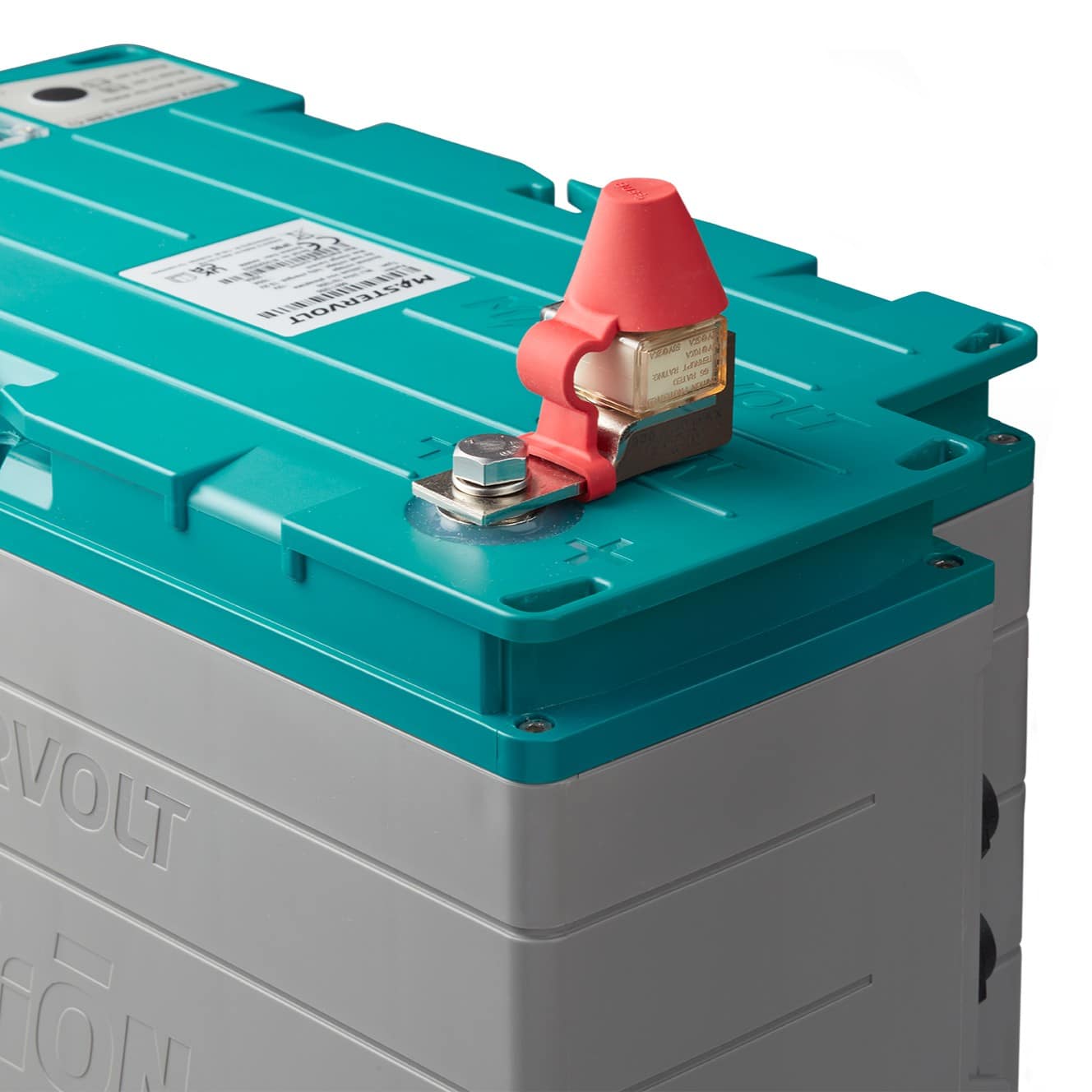

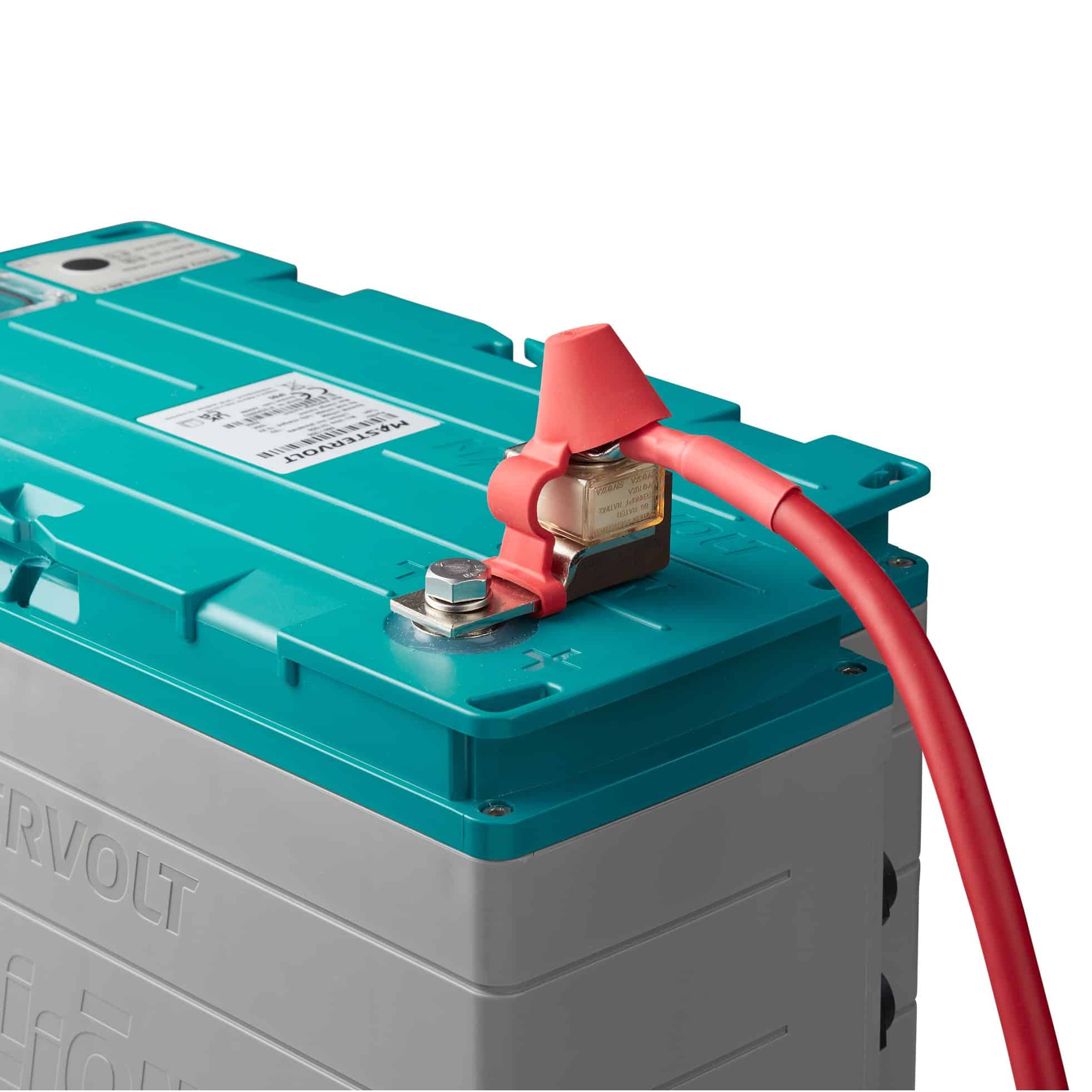

- Mounts on 3/8” terminal studs
- Fuse sold separately
Specifications
| Specification Heading | Specification Detail |
| Fuse Type | MRBF / CBBF |
| Current Rating | 300A max |
| Voltage Rating | 58V DC max |
| Terminal Stud Size | 5/16" (M8) |
| Terminal Stud Torque | 75 in-lb (8.47 Nm) |
| Weight | 0.16lbs |
