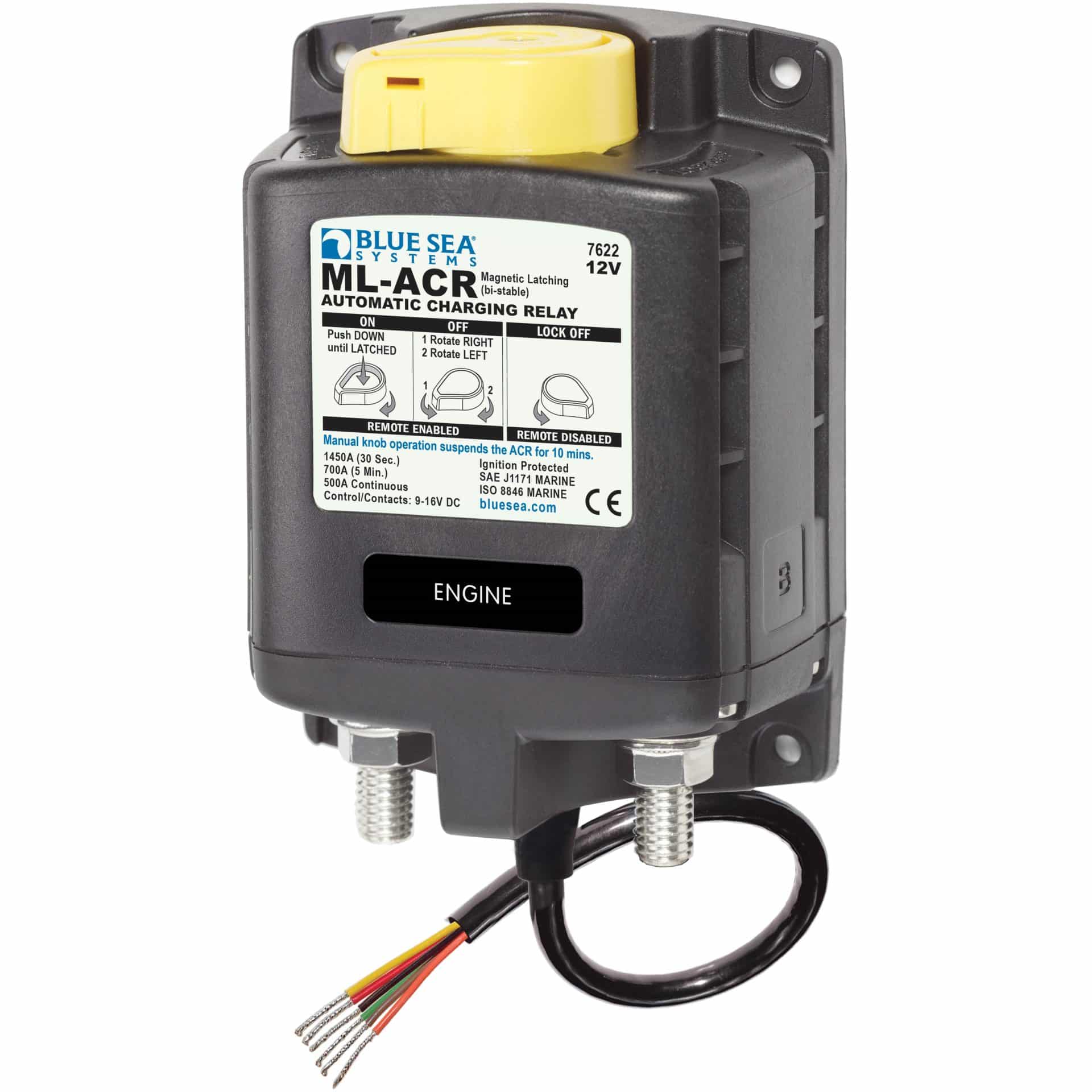

Blue Sea 7622B ML-ACR Automatic Charging Relay with Manual Control – 12V DC 500A

$199.99

500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine

SKU: 7622B-BSS Categories: , , , ,
Range Discount
1 - 9 $199.99
10 + $190.74

Description

500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine

  • Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing
  • Includes ML-Series Remote Control Contura Switch PN 2146
  • Automatically manages the charging of two large battery banks
  • Allows paralleling of battery banks for emergency starting
  • 500 Ampere continuous rating to support high-output alternators
  • Magnetic Latch (ML)—ACR draws very low current (<40mA to monitor terminal voltage) in the “ON” or “OFF” states, and draws moderate current for very short time when changing state
  • Dual sensing—senses charge on both battery banks
  • Start Isolation (SI)—can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
  • Engine Isolation (EI)—can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
  • Senses charging on two battery banks
  • LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation
  • 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8″ (22mm) stud length accepts multiple cable terminals
  • Silver alloy contacts provide high reliability for switching live loads
  • Label recesses for circuit identification
