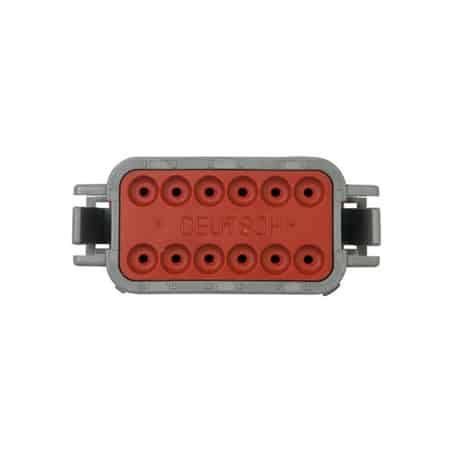

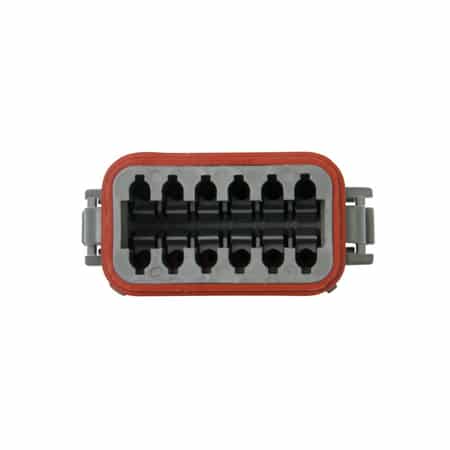

Deutsch DT06-12SA 12-Pin Male Connector Plug – Waterproof DT Series Housing for 14–20 AWG Wire

The Deutsch DT06-12SA is a high-performance 12-pin male plug housing designed for demanding electrical applications in harsh environments. Part of the industry-trusted DT Series, this connector is engineered to provide reliable and environmentally sealed connections for automotive, industrial, marine, and off-road equipment.

Manufactured from durable thermoplastic, the DT06-12SA resists impact, moisture, chemicals, and extreme temperatures. When mated with its corresponding socket (DT04-12PA) and used with size 16 solid or stamped & formed contacts, it ensures a secure, IP68-rated waterproof connection for wires ranging from 14 to 20 AWG.

Ideal for use in wiring harnesses, vehicle lighting, sensors, and control systems, the DT06-12SA features a built-in locking mechanism for vibration resistance and long-lasting performance.

Key Features:

• Part Number: DT06-12SA

• Series: Deutsch DT

• Contact Count: 12-pin (male plug)

• Wire Gauge Compatibility: 14–20 AWG

• Contact Size: Size 16 (sold separately)

• Material: High-grade thermoplastic

• Sealing: IP68-rated when mated and properly assembled

• Temperature Range: -55°C to +125°C

• Applications: Automotive, Marine, Off-Road, Agricultural, Industrial Machinery

Compatible Components:

• Mating Connector: DT04-12PA (12-pin female receptacle)

• Wedgelock: W12S

• Contacts: 0462-201-16141 (solid), 0460-202-16141 (stamped & formed)

Upgrade your electrical connections with the Deutsch DT06-12SA — built to perform where reliability is non-negotiable.
