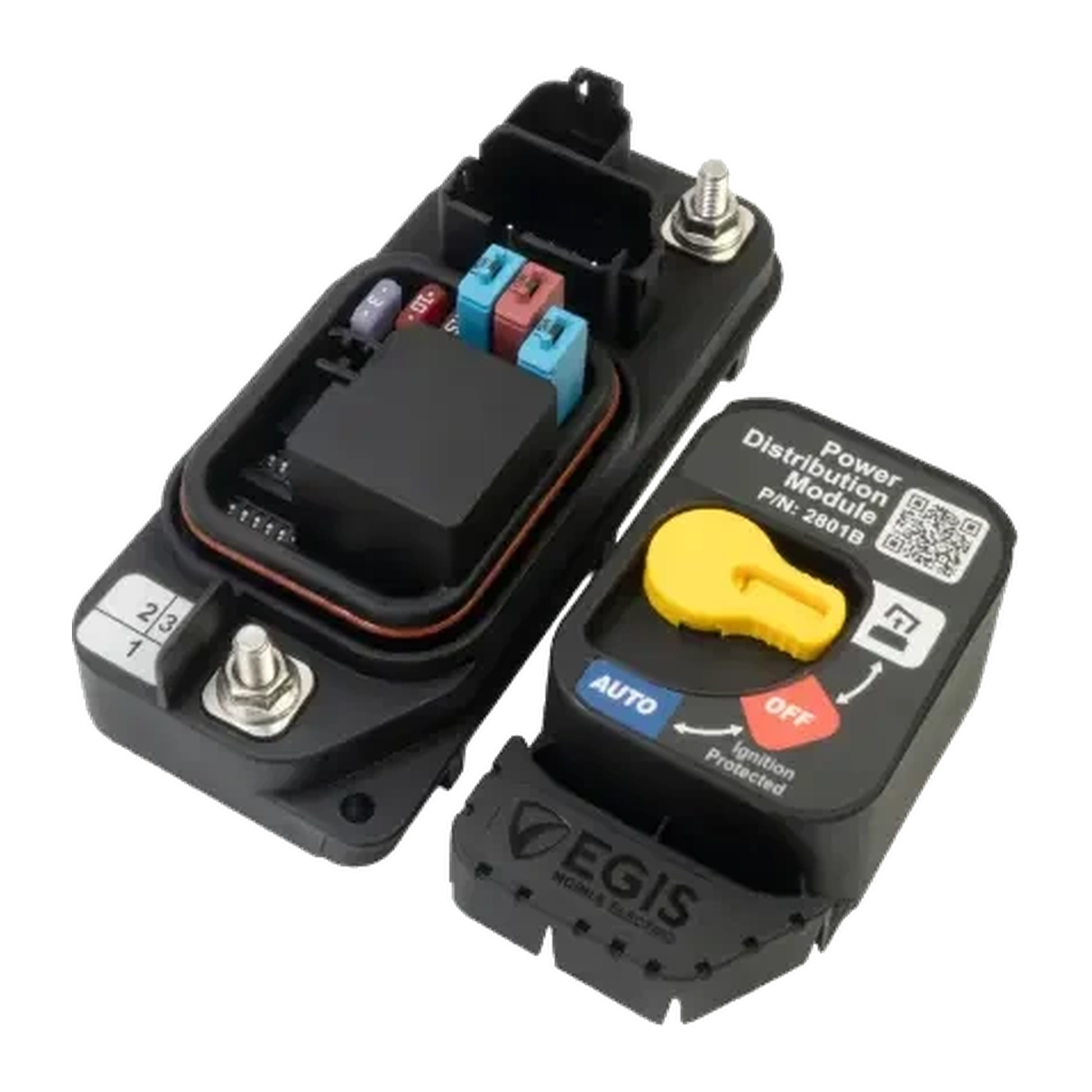

The Egis Mobile Electric 2801B Modular PDM TDR is a compact power distribution module that provides 24/7 power, ignition-switched power and time-delay switched-off power from one sealed unit for intelligent battery protection. It includes fused branch circuits, ground return circuits and a manual kill switch.
Outputs are programmed with DIP switches under the cover, optional under- and over-voltage protection can be applied even to 24/7 outputs, and remote or local kill-switch options isolate every auxiliary load. Sealed to IP67 with Deutsch DT/AT connectors for plug-and-play harnessing, the module dovetails mechanically with Egis Modular RDM relay modules and links electrically with optional 8782B / 8783B busbars.
Key Features:
- 24/7, ignition-switched and time-delay-off outputs in one module
- Programmable via DIP switches with reverse-side configuration guide
- Optional under- and over-voltage protection
- Remote and local kill-switch options
- 3-position manual override knob
- Front-facing LED status, remote LED capable
- Accepts ATM-MINI circuit breakers and 1–15A fuses
- Sealed to IP67 with DT/AT connectors and Gore-Tex vent
- Protective cover with break-away tabs
- Dovetail side-by-side stacking with Modular RDM modules
- 4-year Egis warranty
Specifications:
| Continuous Current | 55A per module |
|---|---|
| Input Voltage Range | 8.0–18.0 VDC |
| Ingress Protection | IP67 |
| Nominal Voltage | 12 VDC |
| Max Cable Size | 2/0 AWG |
| Hardware | Stainless steel, self-locking |
| Branch Protection | ATM-MINI circuit breakers or 1–15A mini fuses (not included) |
| Warranty | 4 Years |
Applications:
- Emergency vehicle and fleet upfits
- Work trucks and service bodies
- Marine accessory distribution
- RV and overland auxiliary systems
The Egis 2801B puts timed shutdown, fusing and kill-switch control in one sealed, expandable module.
