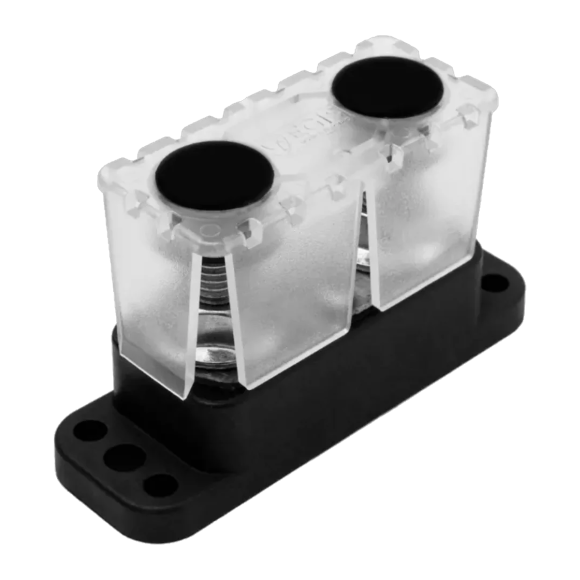

The Egis Mobile Electric 6252-200B PowerBar is a 250 amp busbar that distributes power or ground from a single source to multiple circuits. It provides two M10 (3/8") studs, giving secure stud-based connections for heavy cable runs.
Built for marine, emergency vehicle, work truck and RV installations, it uses a tin-plated copper busbar for low voltage drop and a 30% glass-filled nylon base for long life in demanding environments. A clear polycarbonate cover protects the connections while keeping them visible. Stainless steel self-locking hardware keeps every connection tight over the long haul.
Key Features:
- Tin-plated copper busbar for superior conductivity and minimal voltage drop
- Stainless steel self-locking hardware for long-term connection reliability
- Bulletproof 30% glass-filled nylon base
- Clear polycarbonate cover
- Two M10 (3/8") studs
- Compact footprint for tight installations
- Mounts with 4× #10 (M5) and 2× 1/4" (M6) holes
- 4-year Egis warranty
Specifications:
| Continuous Current | 250A |
|---|---|
| Max Voltage | 80 VDC |
| Studs | 2 × M10 (3/8") |
| Screw Terminals | None |
| Busbar Material | Tin-plated copper |
| Base Material | Nylon 6, 30% glass-filled |
| Cover | Clear polycarbonate |
| Base Color | Black |
| Mounting Holes | 4× #10 (M5) & 2× 1/4" (M6) |
| Dimensions (L × W × H) | 3.68" × 2.79" × 1.22" |
| Warranty | 4 Years |
Applications:
- Marine vessels and boats
- Emergency and fire apparatus
- Work trucks and service bodies
- RVs, buses, vans and 4×4 builds
- Battery bank positive and negative distribution
Compact, rugged and rated for 250A continuous, the Egis 6252-200B is a dependable distribution point for any demanding 12V, 24V or 48V DC system.
