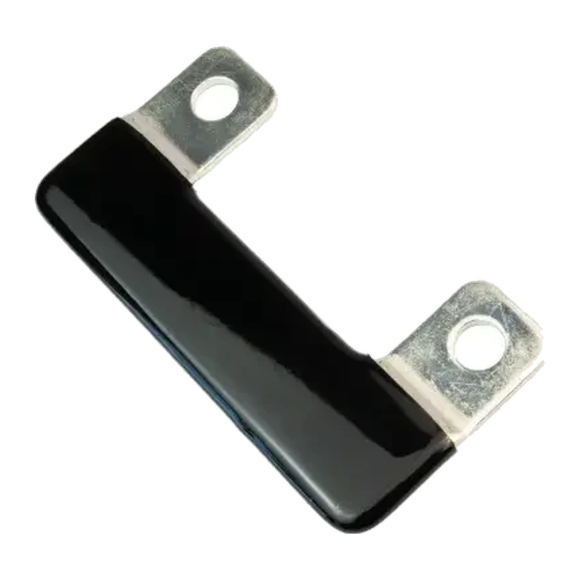

The Egis Mobile Electric 8782B Dual Link Busbar connects two Egis Modular PDM / RDM modules or 87 Series surface and panel mount circuit breakers, eliminating long cable runs and the labor of preparing jumpers.
Tin-plated copper delivers superior conductivity with minimal voltage drop, and over-molded insulation prevents inadvertent short circuits in tight installs.
Key Features:
- Links two Modular PDM / RDM modules or 87 Series breakers
- Tin-plated copper for minimal voltage drop
- Over-molded insulation
- 65 mm offset, 8 mm stud holes
- 4-year Egis warranty
Specifications:
| Compatible With | Egis Modular PDM / RDM, 87 Series breakers |
|---|---|
| Positions | 2 |
| Offset | 65 mm |
| Stud Hole | 8 mm |
| Material | Tin-plated copper, over-molded insulation |
| Warranty | 4 Years |
Applications:
- XD relay and FLEX system builds
- Marine, emergency vehicle and work truck installs
- RV and overland battery systems
The Egis 8782B turns a stack of modules into one tidy, cable-free assembly.
