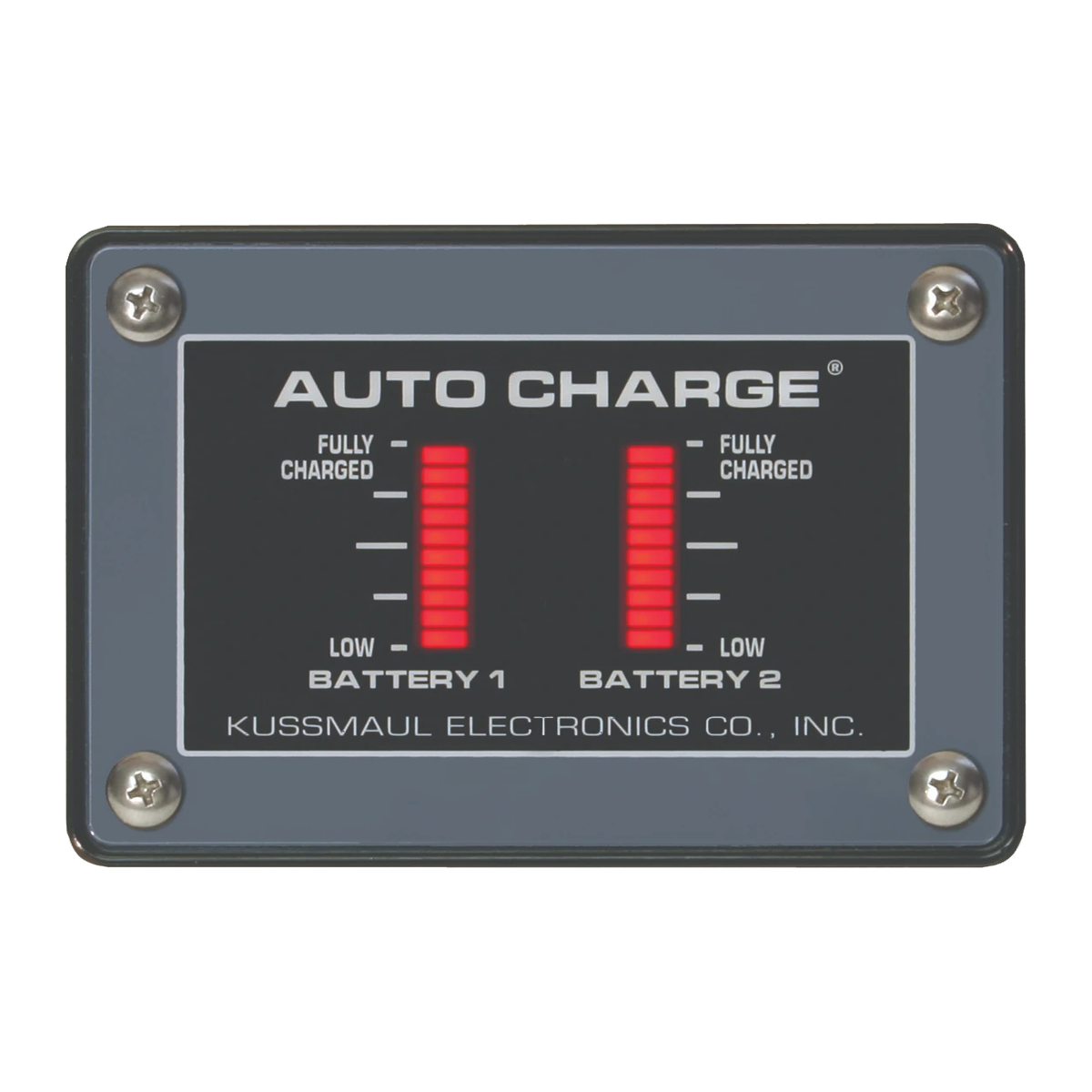

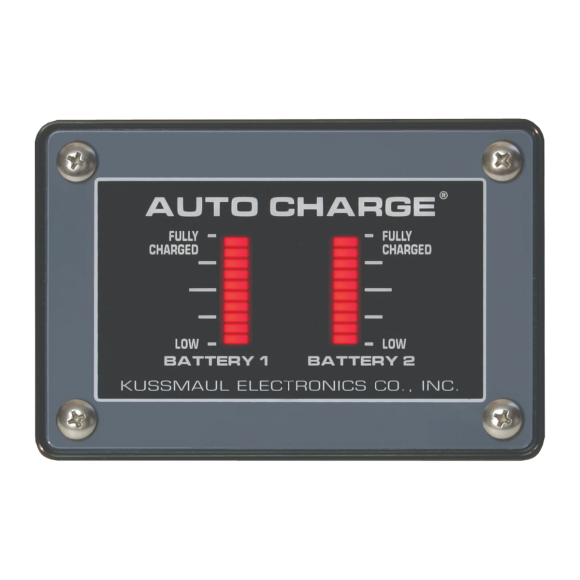

The Kussmaul 091-76-12 Dual Bar Graph Display is a universal two-bank battery voltage display for any 12 volt, negative-ground system. Two LED bar graphs show the state of Battery 1 and Battery 2 at a glance, from fully charged to low.
It wires directly to the batteries for a straightforward installation and mounts through a panel cut-out with four #8-32 screws (supplied) and a gasket that forms a watertight seal. A 24V version (091-76-24) is also available.
Key Features:
- Monitors two battery banks
- LED bar graph – fully charged to low
- Universal: works with any 12V negative-ground system
- Wires directly to the batteries
- Gasketed watertight panel mount
- Mounting hardware (4× #8-32 screws) supplied
Specifications:
| System Voltage | 12 VDC, negative ground |
|---|---|
| Display | Dual LED bar graph |
| Banks Monitored | 2 |
| Panel Cut-Out | 2-1/16" × 3-1/2" |
| Mounting | 4× #8-32 screws, 3.90" × 2.375" hole spacing |
| Seal | Gasketed, watertight |
Applications:
- Fire apparatus and rescue trucks
- Dual-battery emergency and fleet vehicles
- Marine and RV dual-bank systems
A simple, sealed way to see both battery banks before you roll.
