- Interrupting Rating (30A): 1000A @ 32 VDC. Interrupting Rating (40-150A): 2000A @ 32 VDC.
- Voltage Rating: 32 VDC
- Operating Temperature Range: -40°C to 125°C
- Housing Material: PET-GF30. Clear Housing Material: PES
- Terminals: Tin plated Copper
- Mounting Torque Rating M6: 6.0 Nm +/- 1 Nm
- RoHS Compliant

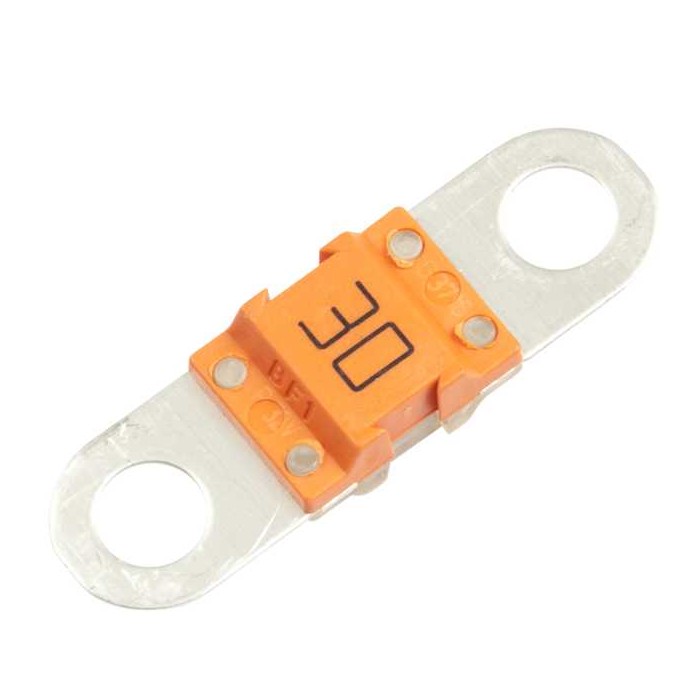

Littelfuse BF1 MIDI® Fuses – 30A to 150A

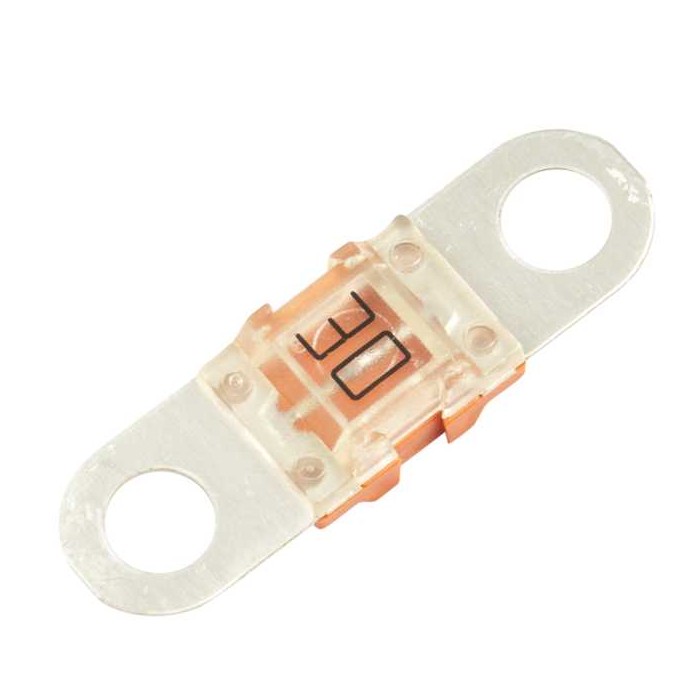

MIDI® Fuses offer a cost-effective, space saving fuse option for high current wiring protection. The MIDI® Fuses are commonly the standard circuit protection device for automobiles and trucks. The fuse features a bolt-on design that saves space to fit right into your application or project. Tin plated contacts on the fuses provide excellent corrosion resistance so the fuse can continue to protect and perform. Transparent housing allows for easy detection of blown fuses. MIDI® fuses are available in 30 amp to 150 amp options.
