OPEK 30A Switching Power Supply with Powerpole Connectors
$129.99

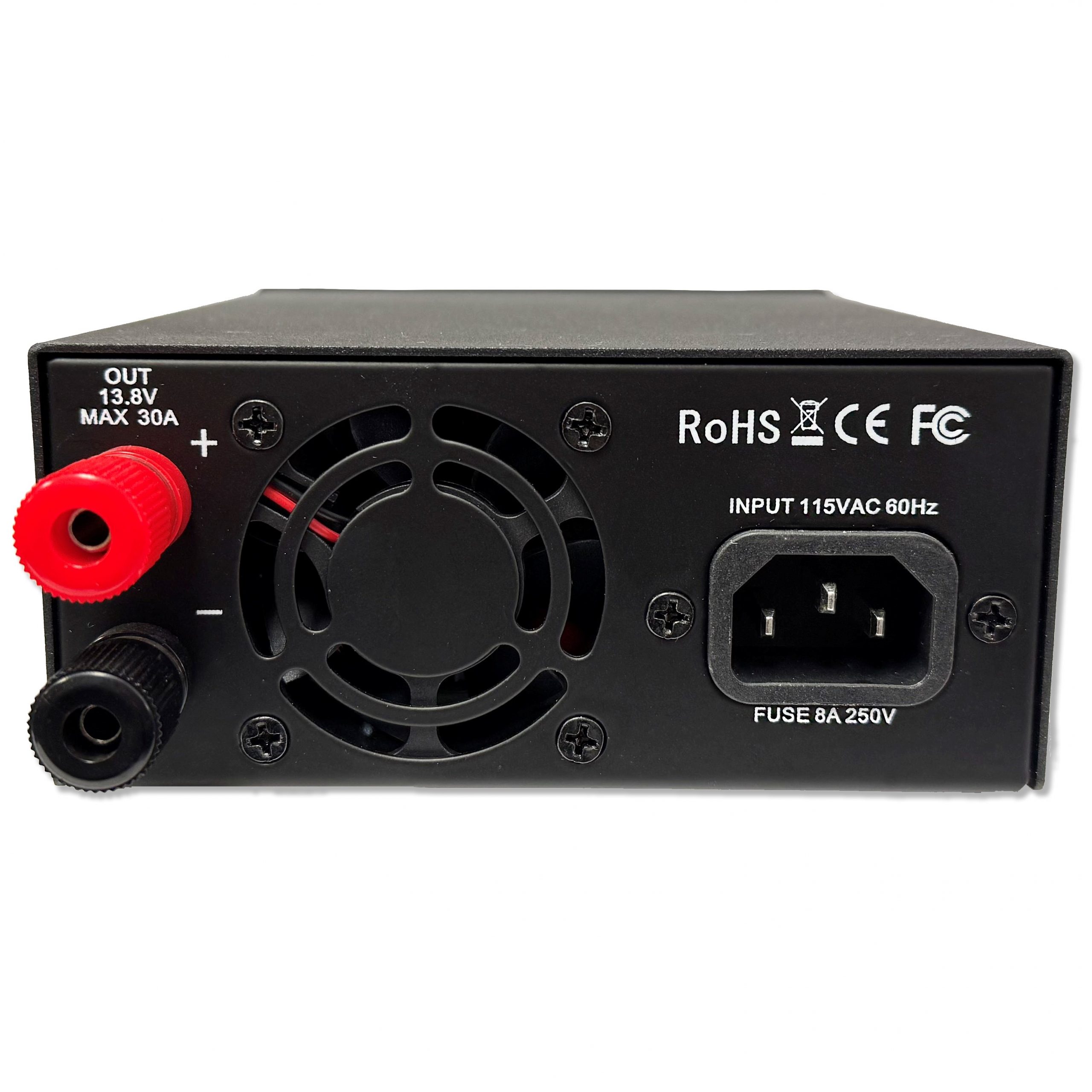

The OPEK OP-PS3002 power supply is designed to run almost any 12 Volt Power electronic product with clean and reliable power. Power your DC devices using either the front mounted dual Powerpoles or rear mounted 1/4″ binding Posts. DC output voltage of 13.8V rated for 25A continuous and 30A surge .
Description
Dual DC Power Outputs
Power your radio and equipment with either the front mounted dual Powerpoles or rear mounted 1/4″ binding posts. Binding posts can also accept banana plugs.
Cooling
The OP-PS3002 power supply is cooled by convection and forced air cooling. That is normal airflow around the power supply in combination with a temperature controlled fan to improve cooling at higher levels of use. The fan is always activated and the speed is controlled by a sensor. When the temperature rises, the fan speed increases.
Applications
- Land Mobile Radio Base Stations
- Communications Systems
- Security Systems
- Test Equipment
- Plotters
- GPS Receivers
- Automotive and Marine Displays
- DC Computers
- 12 Volt Lighting Systems
- OEM Applications
2-Year Limited Warranty
12 Volt Power is the North American distributor for OPEK Power Supplies. 12 Volt Power offers this product to be free from defects in material and workmanship for a 2-year period from date of purchase.
Specifications
Specification Heading | Specification Detail |
Input Voltage | 100-120V AC |
Input Frequency | 57-63Hz |
Polarity Grounded | Negative |
Output Voltage | 13.8V DC |
Continuous Output Current | 25A |
Max Output Current | 30A |
Rippled & Noise | <100mVpp |
DC Output - Front | Dual Powerpoles |
DC Output - Rear | Binding Posts/Banana Plugs |
Internal Protection | Over-Temperature, Short-Circuit, and Over-Current |
Variable Fan | Yes - Thermally Controlled |
