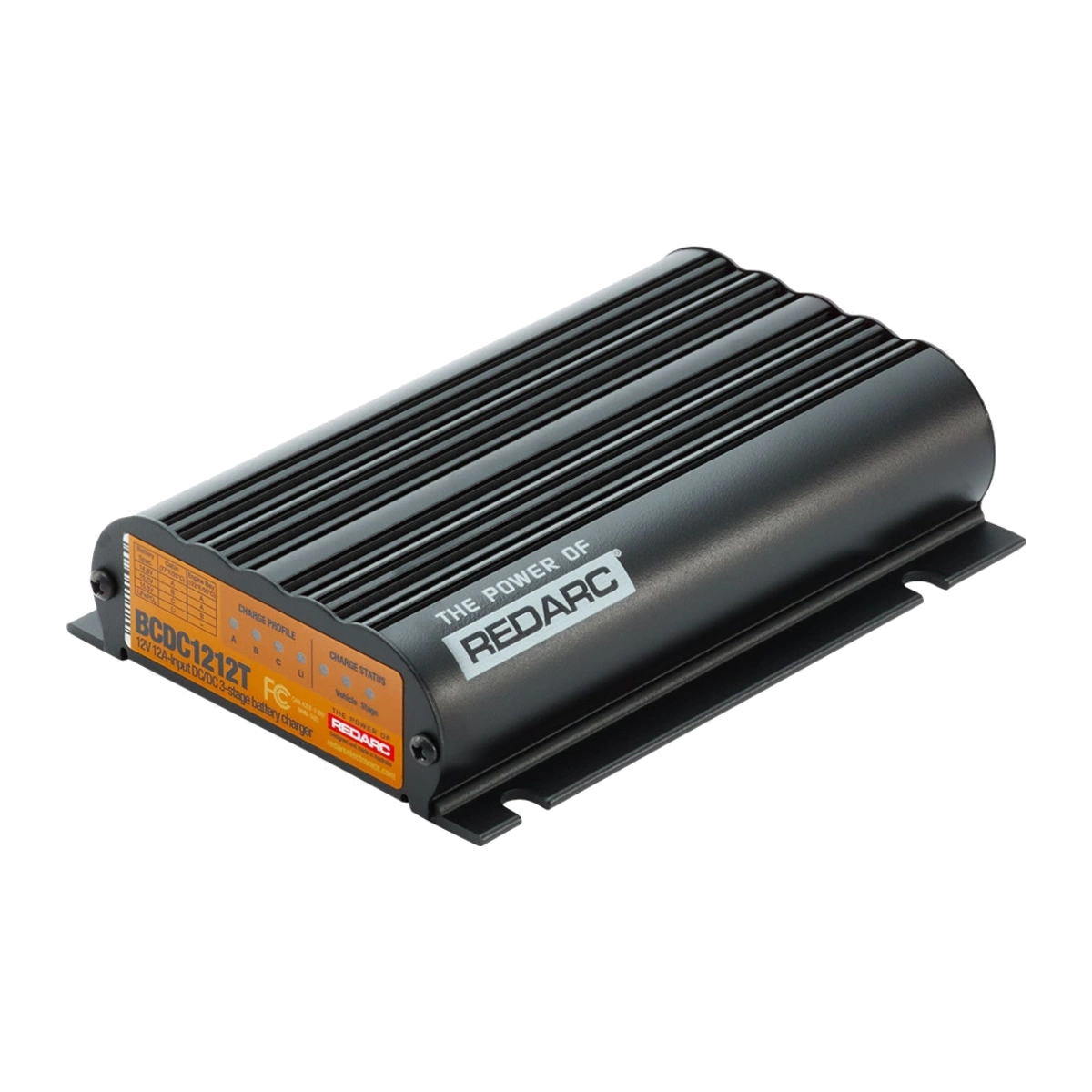

12A DC-DC charger for dump, tipper, and liftgate trailer batteries – charges through the 7-pin while you drive, no idling.
Key Features
- Charges the trailer battery through the tow vehicle's 7-pin connection
- Built for dump/tipper trailer and liftgate battery charging
- Fits in the trailer nose cone
- Charges AGM, Gel, Calcium, lead acid, and LiFePO4
- Works from 12V or 24V tow vehicles
- Not rated for engine bay installation
Specifications
| Input Voltage | 9 – 32V |
|---|---|
| Output Voltage | 12V DC |
| Max. Rated Output Current | 11A (12V vehicle) / 20A (24V vehicle) |
| Continuous Rating | 12A |
| Nominal Output Power | 147W (12V vehicle) / 294W (24V vehicle) |
| Max. Charging Voltage | 15.3V |
| Battery Chemistry | Standard Lead Acid, Calcium, Gel, AGM, LiFePO4 |
| MPPT Solar Regulator | No |
| Input Fuse | 15A – 23A (not supplied) |
| Output Fuse | 30A (not supplied) |
| Standby Current | <8mA |
| Operating Temperature | 5°F to 176°F |
| Connector Type | Bare wire |
| Weight | 1.87 lb (850 g) |
| Dimensions (L × W × H) | 6.5" × 4.7" × 1.5" (165 × 120 × 37 mm) |
| Engine Bay Install | No |
| Warranty | 2 Years |
