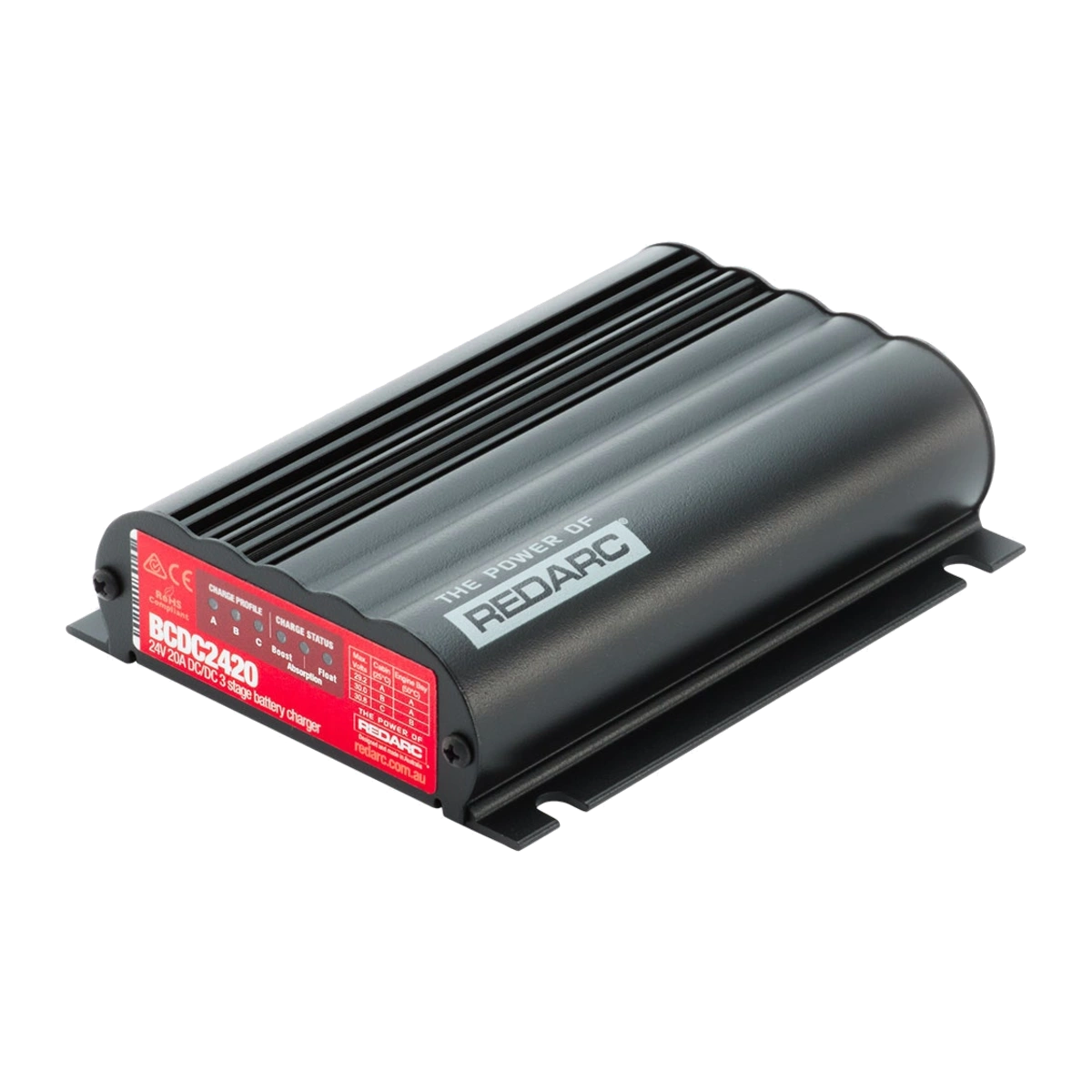

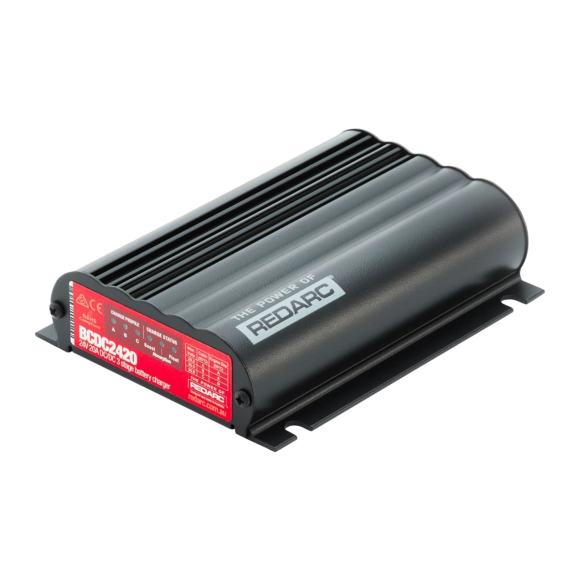

3-stage 24V 20A DC-DC charger with built-in MPPT solar regulator for truck and commercial 24V auxiliary banks.
Key Features
- 3-stage 24V / 20A charging from a 9–32V vehicle input
- Built-in MPPT regulator – charges 24V banks from 12V solar panels
- Suited to tailgate lifter and side-curtain battery banks
- Charges AGM, Gel, Calcium, VRLA, and standard lead-acid batteries
- Sealed electronics – engine bay rated, operates to 176°F
Specifications
| Input Voltage | 9 – 32V |
|---|---|
| Solar Input Voltage | 9 – 32V |
| Solar Switch-On Voltage | 17.5V |
| MPPT Solar Regulator | Yes |
| Output Voltage | 24V DC |
| Max. Rated Output Current | 20A |
| Nominal Output Power | 600W |
| Max. Charging Voltage | 30.6V |
| Battery Chemistry | AGM, Gel, Standard Lead Acid, Calcium |
| Input Fuse | 60A – REDARC FK60 recommended (not supplied) |
| Output Fuse | 40A – REDARC FK40 recommended (not supplied) |
| Standby Current | <8mA |
| Operating Temperature | -4°F to 176°F |
| Connector Type | Bare wire |
| Weight | 1.43 lb (650 g) |
| Dimensions (L × W × H) | 5.9" × 4.7" × 1.5" (150 × 120 × 37 mm) |
| Engine Bay Install | Yes |
| Warranty | 2 Years |
