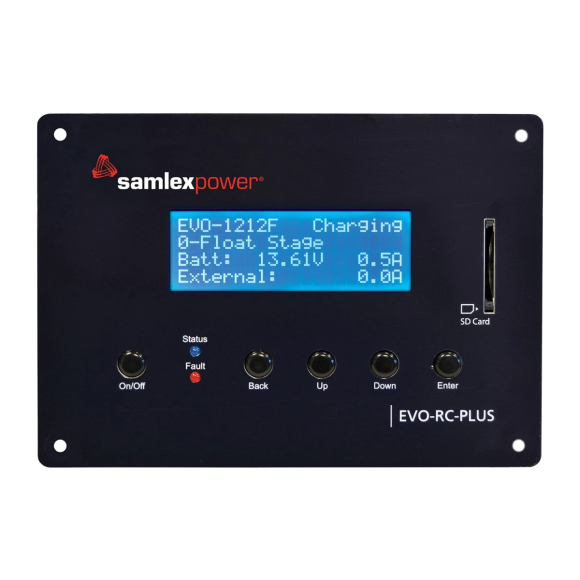

The EVO-RC-PLUS is an intelligent remote control designed specifically for use with the following Samlex Evolution® Series of Inverter/Chargers:
(i) F Series: EVO-1212F, EVO-1212F-HW, EVO-1224F, EVO-1224F-HW
(ii)120V Models: EVO-2212, EVO-3012, EVO-2224, EVO-4024
(iii)230V Models: EVO-2212E, EVO-3012E, EVO-2224E, EVO-4024E
(iv)120/240V Split Phase Model: EVO-4248SP
View real-time activity on the alpha numeric LCD display with 4 rows of 20 character while the unit is operating: Output voltage, Frequency, Amps, Watts, Volt Amps, Power Factor, Battery Voltage, Battery Current, Solar Input Current and more.
Use the remote to program inverter and battery charging parameters. Save a parameter set on a removable 32GB SD Card (the SD card slot located on the remote face of the EVO-RC-PLUS). Then transfer the saved parameters to other EVO® inverter/chargers.
Data log historic power consumption, inverter functionality, battery charging activity, faults and all of the conditions leading up to them. Analyze trends for more efficient use of off-grid resources.
Key Features
- Advanced features for programming various parameters and modes of operation
- 4 rows of 20 characters alpha numeric LCD display for messaging
- Robust metal enclosure
- SD card slot can manage a removable SD Card up to 32GB (SD Card not included)
- Includes 10M/33ft data cable
Specifications
| Display | 4-line × 20-character alphanumeric LCD |
|---|---|
| Data Logging | Removable SD card up to 32GB (card not included) |
| Cable | 10 m / 33 ft data cable included |
| Enclosure | Metal |
| Compatible With | EVO-1212F, EVO-1212F-HW, EVO-1224F, EVO-1224F-HW, EVO-2212, EVO-3012, EVO-2224, EVO-4024, EVO-2212E, EVO-3012E, EVO-2224E, EVO-4024E, EVO-4248SP |
| Weight | 0.6 lb (0.3 kg) |
| Dimensions | 6.3 × 4.5 × 1.4 in (160 × 114 × 36 mm) |
| Warranty | 3-Year Limited |
Applications
- Boats, RVs, trucks, specialty vehicles
- Alternative energy, off-grid, cabins, remote locations, areas with unreliable utility power
- Back-up and emergency power applications
