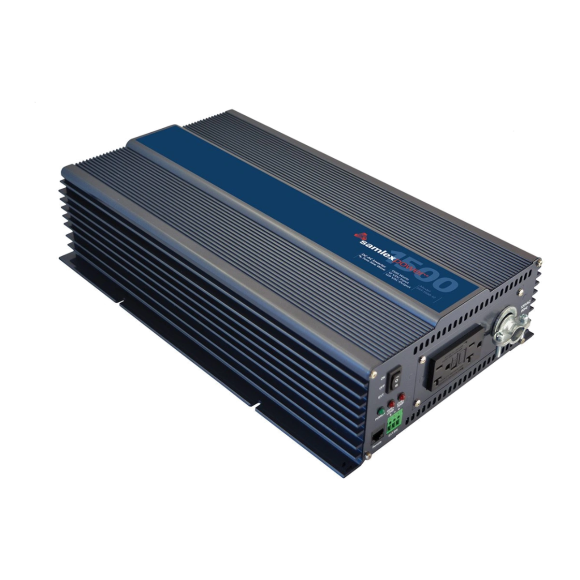

This high efficiency DC-AC inverter converts 12 Volts DC to 1500 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. Features include overload protection, low battery alarm / shut down, low idle power draw. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel, the unit is also hard wire capable. Safety certified to UL and CSA standards, FCC Compliant.
Optional remote control (sold separately): Model RC-300
Key Features
- High efficiency
- Can be hard wired
- Temperature controlled cooling fan – reduces energy consumption
- Low interference
- Wide operating DC input range: 10.7 – 16.5 VDC
- Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
- UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
- Low idle power draw
- Dual GFCI protected AC outlets
- Optional remote control (sold separately): Model RC-300
- Safety certified to UL standards, FCC compliant
- Remote Input – Turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch
Specifications
| Continuous Output | 1500W |
|---|---|
| Surge | 3000W |
| DC Input | 12 VDC (10.7 – 16.5 VDC) |
| AC Output | 120 VAC, 60 Hz |
| Outlets | NEMA 5-20R GFCI duplex; hardwire capable |
| Remote | RC-300 (optional) |
| Weight | 15.6 lb (7.1 kg) |
| Dimensions | 10.35 × 18.43 × 4.16 in (263 × 468 × 106 mm) |
| Safety | ETL listed to UL & CSA standards; FCC compliant |
| Warranty | 3-Year Limited |
Applications
- Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
