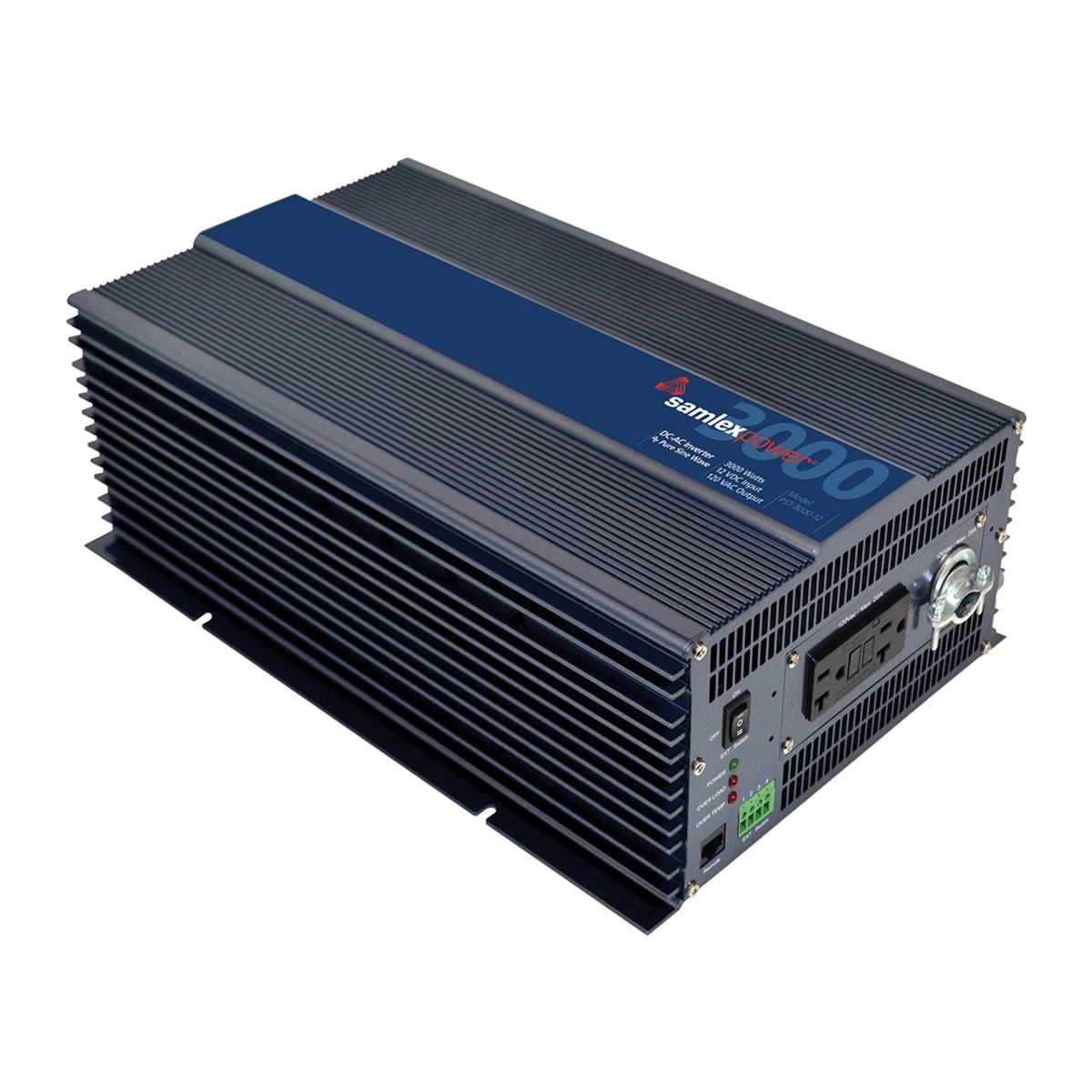

This high efficiency pure sine inverter converts 12 Volts DC to 3000 Watts of AC power at 120 Volts, 60 Hz. Features include temperature controlled cooling, low interference, wide temperature operating range, overload protection, low battery alarm / shut down & low idle power draw. AC power is available from dual NEMA-20R GFCI outlets on the front panel, the unit is also hard wire capable. Safety certified to UL and CSA standards, FCC Compliant.
Optional LCD remote control, model RC-300.
Key Features
- High efficiency & low RF emissions
- Can be hard wired
- 2x Surge
- Wide DC input range
- Dual GFCI Protected Outlets
- Wide temperature operating range -20 to +40°C / -4 to +104°F
- Temperature controlled cooling fan
- Low idle power draw
- Remote Input – Use to turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch
- Optional LCD remote control, model RC-300
- UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
- Safety certified to UL & CSA standards, FCC compliant
Specifications
| Continuous Output | 3000W |
|---|---|
| Surge | 2X (6000W) |
| DC Input | 12 VDC |
| AC Output | 120 VAC, 60 Hz |
| Outlets | Dual NEMA 5-20R GFCI; hardwire capable |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
| Remote | RC-300 (optional) |
| Weight | 21.6 lb (9.8 kg) |
| Dimensions | 10.35 × 17.97 × 5.71 in (263 × 457 × 145 mm) |
| Safety | UL & CSA certified; FCC compliant |
| Warranty | 3-Year Limited |
Applications
- Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
