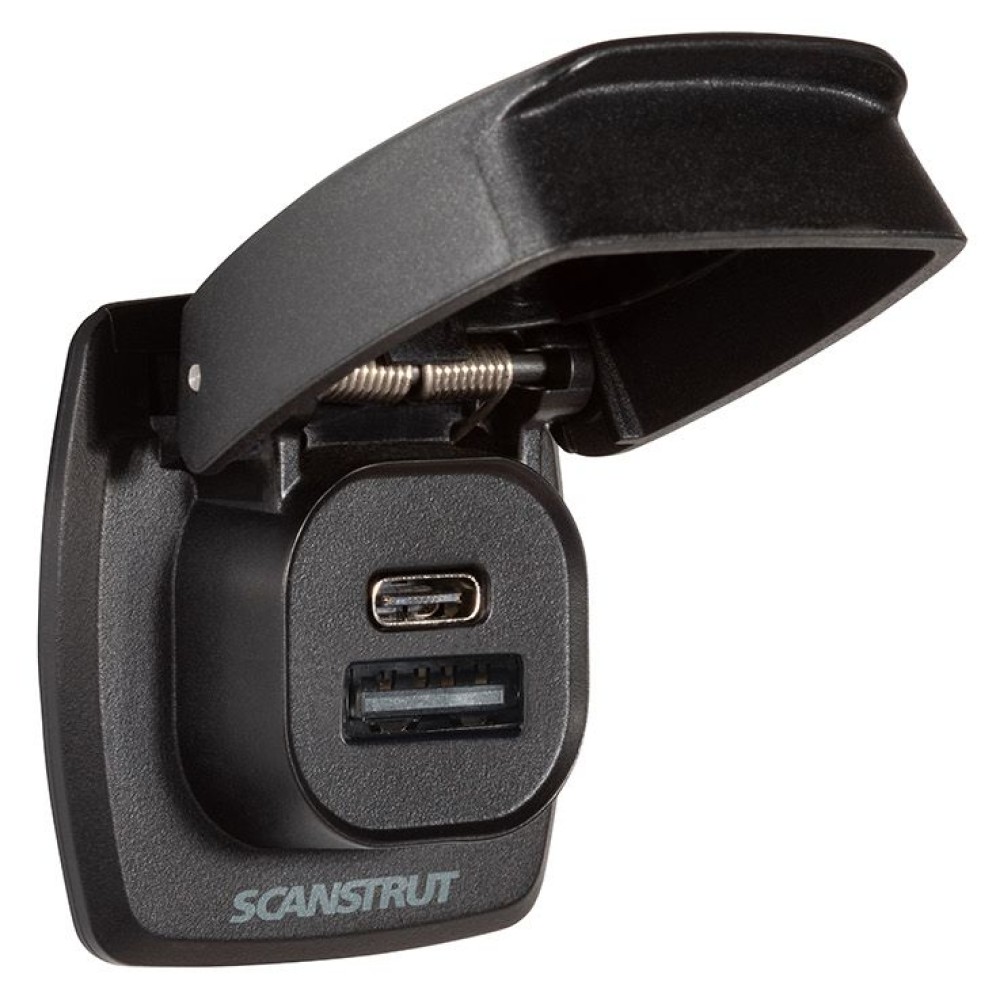

Scanstrut Flip Pro Plus USB Charger

The Flip Pro Plus is the newest product in the series of Flip Pro. A combination of our most sought-after chargers, designed to be used with either a 12V or 24V input and features 1x USB-A and 1x USB-C, to create a rapid universal ultra-fast charging solution.

Design
Featuring a super-compact footprint that matches the rest of our Flip Pro range and is constructed from premium, marine-grade materials. Flip Pro Plus has been rigorously tested and is IPX4 waterproof, making it completely washdown-ready.

When not in use, the spring-loaded caps remain tightly closed, protecting the ports from the elements.

Capabilities
Flip Pro Plus is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V. With a PD chip, this charger is truly universal, making it perfect for charging modern laptops via the USB-C port. It is also designed for charging large tablets, offering an effortless charge for both an iPad Pro & iPhone at the same time.

Installation
Easy Install, using standard USB mounting hole – 32mm (1 1/8”) and is supplied with a front mount bezel. The install cut-out matches our Flip Pro Max, Duo, and Multi USB sockets (32mm (1 1/8”) for a seamless look across the range.

USB–C output
60W max on 24V system
36W max on 12V system

USB-A – A output
36W max

Universal
Universal fit for any USB-A or USB-C connectors.
Fast charge (60W max) up to 2 devices at a time

Washdown Proof
IPX4 waterproof with the cover closed

Marine Ready
Internal anti-corrosion protective coating
UV resistant
316 stainless hinge and spring

Electrical Information
Input voltage: 10-30V DC (12/24V System)
Input current Max: 6A (10A fuse recommended)
Standby power draw: 0.01W

Important information
The charge cable supplied with your device (tablet, phone, action camera, etc) must be used to achieve maximum charge performance from this charger. Phones will charge at the same speed whether on a 12V or 24V input voltage system. However, a 24V system must be used to get the full 60W output suitable for fast-charging laptops.
