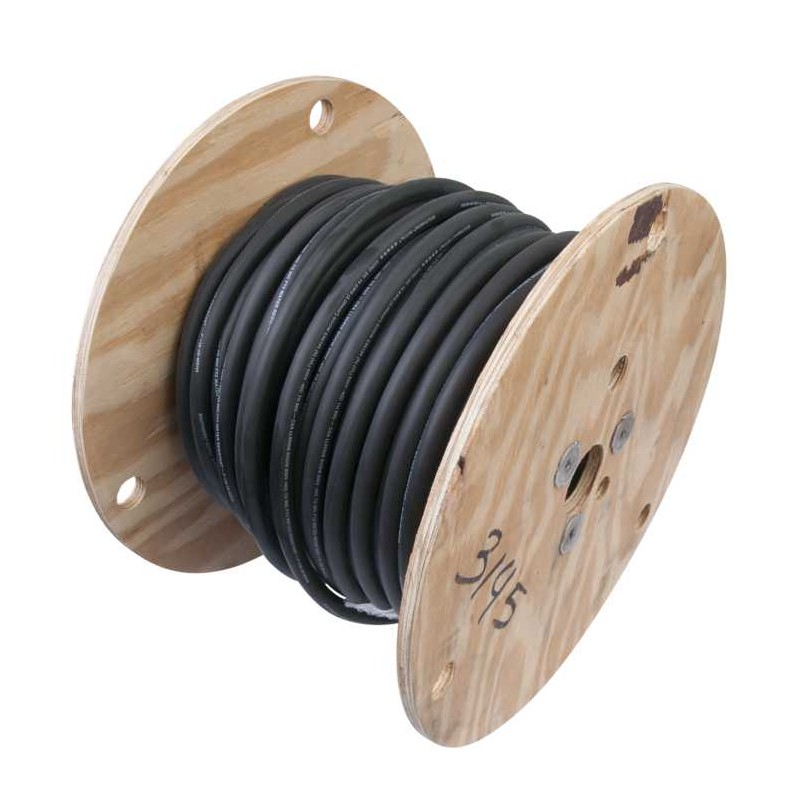

SOOW Multi Conductor Power Cable

SOOW (MSHA) cable is a rugged, flexible power cord designed for industrial equipment, heavy tools, battery chargers, inverters, and power extensions. With an EPDM insulation, SOOW cable offers exceptional resistance to oil, acids, impact, sunlight, flame, and high temperatures, ensuring long-lasting durability in harsh environments. The cable maintains flexibility across a wide temperature range, making it ideal for high-temperature applications. Rated at 600 volts, SOOW cable meets UL requirements, is CSA listed, and passes the CSA FT2 Flame Test, ensuring superior safety and performance. MSHA compliant, NEC 400 and NFPA 70 permitted, and manufactured in the USA.

SKU: N/A Categories: Bulk Wire & Cable Shore Power

Rope-lay, bunch-stranded 30 AWG SAE 99.99% oxygen-free (OFE) high-purity copper conductors
Internal conductors insulated with proprietary LSHF EPDM compound; color-coded
Twisted and reinforced with wrapped paper spacers
Jacketed with proprietary CPE compound
600V Rated
Insulation resistant to abrasion, battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid
Jacket resistant to abrasion, crushing force, extreme temperatures, flame, impact, oil, sunlight, and water
60°C (140°F) oil resistant temperature rating (CPE compound)
UL tested 720 hours sunlight resistance rating (CPE compound)
-40°C (-40°F) to 90°C (194°F)

Standards & Certifications

MSHA Compliant
NEC Article 400 Permitted
NFPA 70 Permitted
30 CFR Subpart K
FT-5 Flame Tested
REACH, RoHS, CMRT, and Prop 65 Compliant

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Specification Heading	Specification Detail
Voltage Rating	600V
Insulation Type	EPDM
Operating Temperature Range	-40°F to 194°F (-40°C to 90°C)
