Victron Energy Smart Battery Sense
$39.10
Smart Battery Sense is a wireless battery voltage and temperature sensor for Victron Smart Devices. With voltage and temperature sense in place, batteries will be better charged; improving charging-efficiency and prolonging battery life.
SKU: SBS050150200
Categories: All Products, Meters & Displays, Victron Energy
Description+
The connection between Smart Battery Sense and one or more Victron Smart devices is wireless: It uses VE.Smart Network – a wireless technology based on Bluetooth Smart.

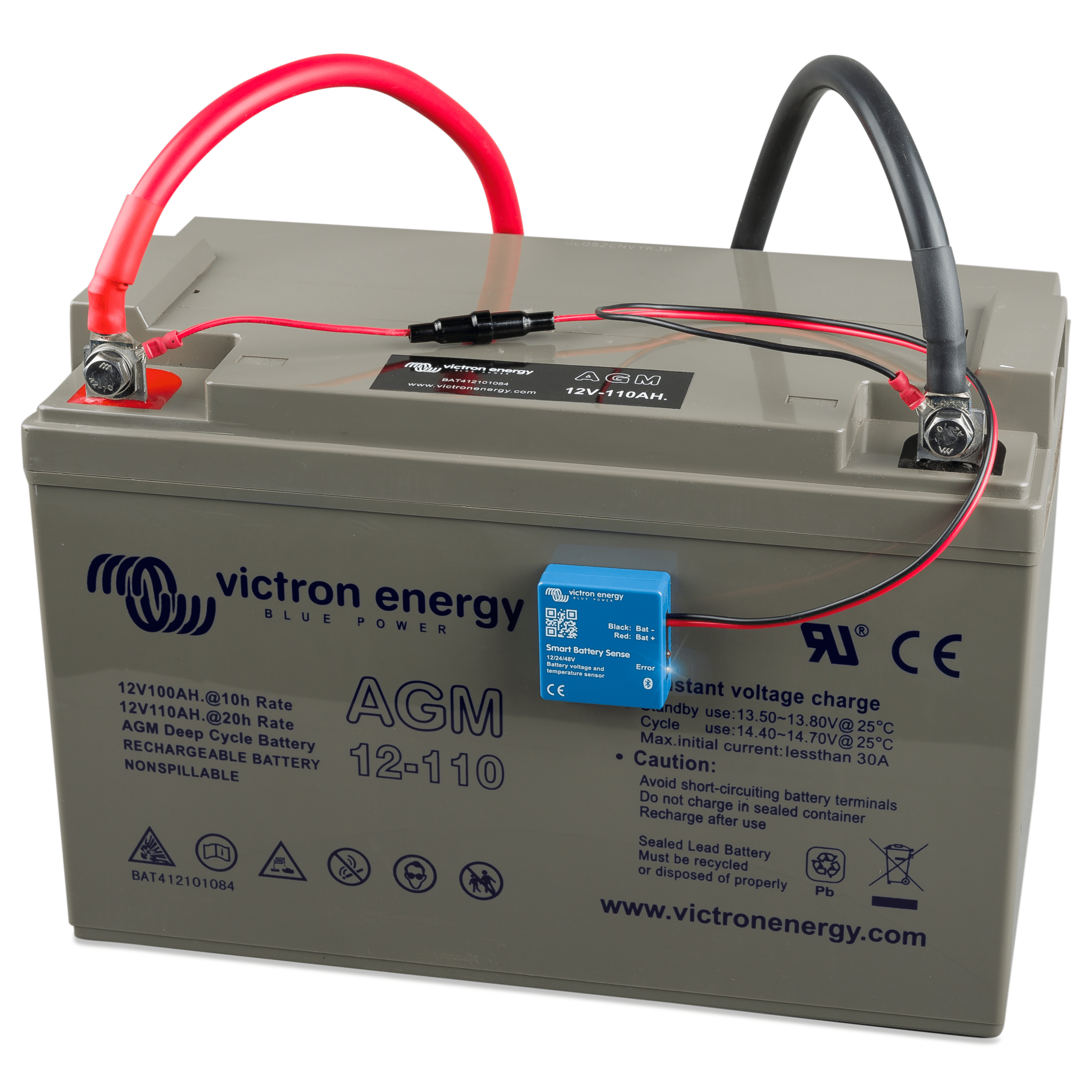

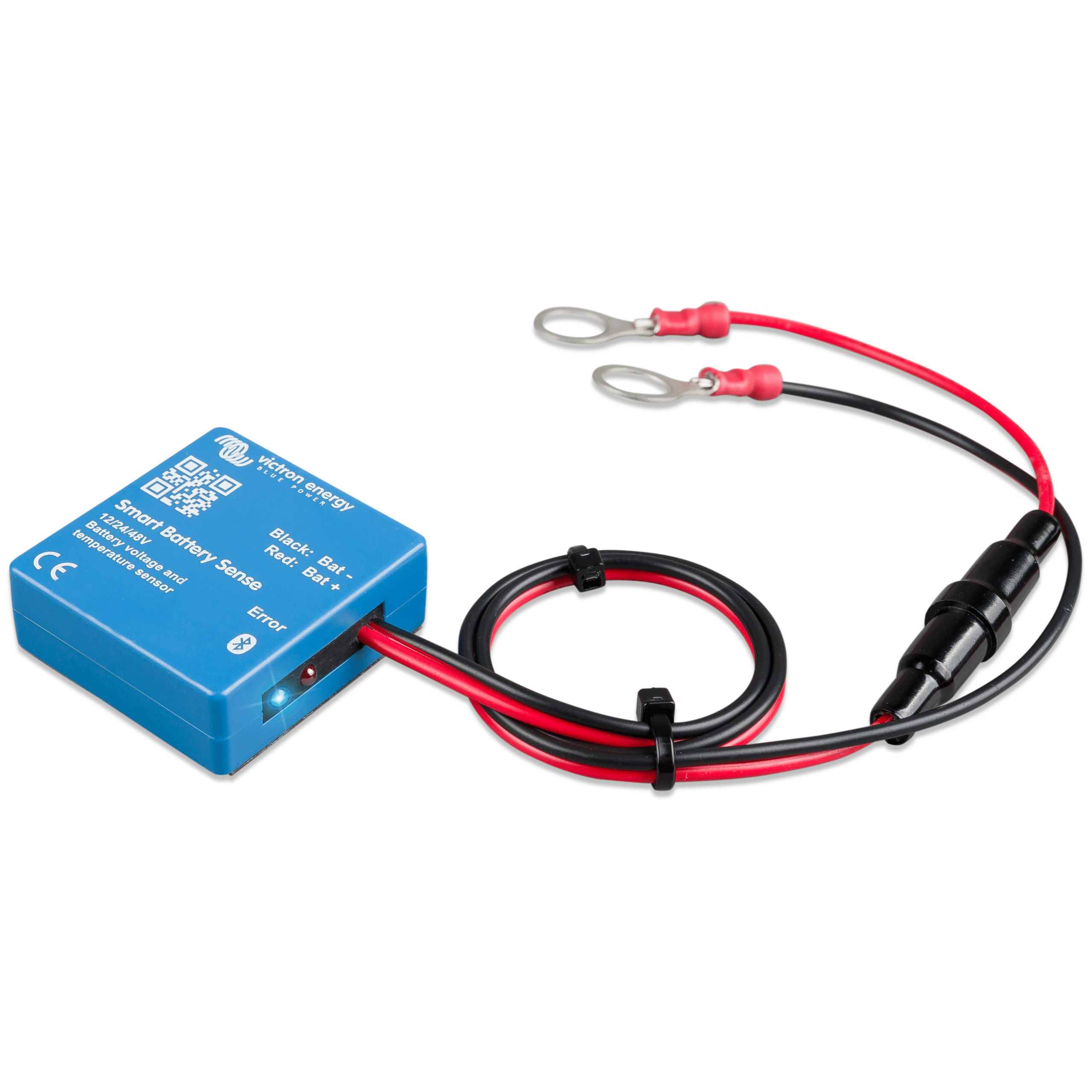

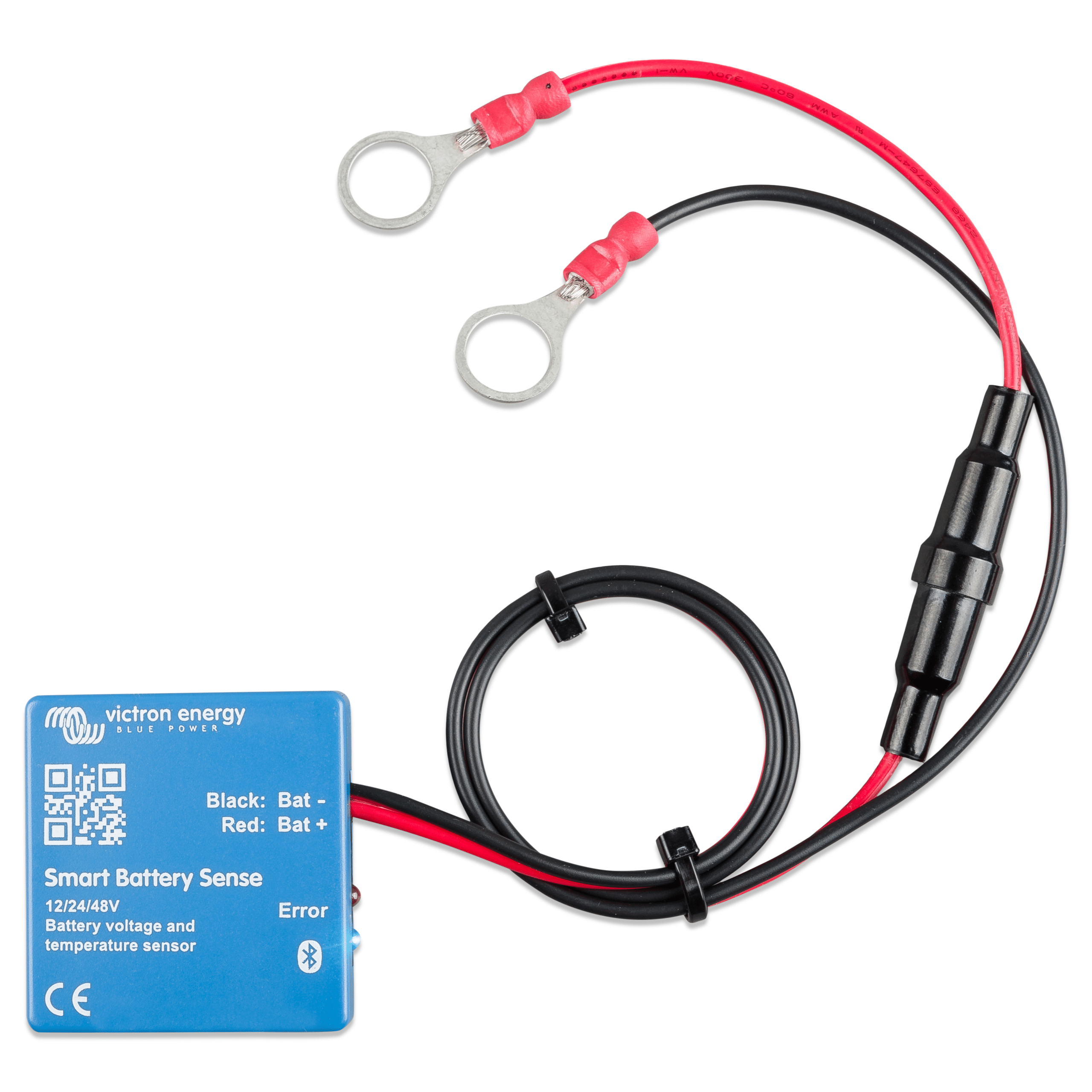

Simple to install & configure, Smart Battery Sense comes with an inline fuse and pre-crimped eyelets. Revealing the selfadhesive tape on the back allows you to mount it directly on the battery.
When can I use Smart Battery Sense …and when should I avoid using it?
- Check the VE.Smart Networking compatible products list for compatible Solar Chargers.
- Smart Battery Sense is not needed, or allowed, in systems which are already controlled by a Color Control GX or Venus GX,
- Smart Battery Sense is not needed for installations which already have a BMV-712 (battery monitor) with a temperature sensor
accessory.
• For installations using a BMV-702 together with its optional temperature sensor accessory – for wireless connectivity consider adding a VE.Direct Bluetooth Smart dongle instead of a Smart Battery Sense.
Specifications+
| Specification Heading | Specification Detail |
| Operating Voltage Range | 8-60V DC |
| Maximum Voltage | 65V DC |
| Cable Length | 18in |
| Ring Terminal Size | M10 (10mm) |
| Fuse Rating | T1A 250V |
| Operating Temperature Range | 14°F to +140°F (-10°C to +60°C) |
| Dimension | 1.5 x 1.5 x 0.55 in |
| Weight | 0.1 lbs |
