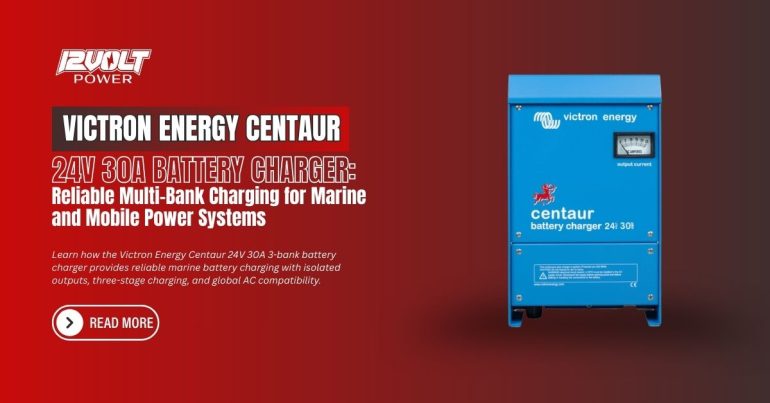

Victron Energy Centaur 24V 30A Battery Charger: Reliable Multi-Bank Charging for Marine and Mobile Power Systems

Reliable battery charging is essential for any marine or mobile electrical system. Whether powering navigation equipment, radios, lighting, refrigeration systems, or onboard electronics, properly maintained batteries ensure vessels and mobile platforms operate safely and efficiently.

One charger designed specifically for these demanding environments is the Victron Energy Centaur 24V 30A Battery Charger. Built by Victron Energy, this charger provides dependable multi-bank charging with rugged construction and intelligent charging technology.

The Centaur series is widely used across marine industries including workboats, military vessels, commercial fleets, and recreational craft because it combines durability, advanced battery management, and global electrical compatibility.

Built for Harsh Marine Environments

Electrical equipment installed on vessels must withstand extreme environmental conditions. Salt air, humidity, vibration, and temperature fluctuations can quickly damage poorly designed components.

The Victron Energy Centaur 24V 30A Battery Charger is designed specifically to operate reliably in these conditions.

Corrosion-Resistant Aluminum Housing

The charger features an aluminum case finished with an epoxy powder coating. This coating helps protect the unit from corrosion caused by salt exposure and moisture.

Integrated Drip Shield

The built-in drip shield protects the internal electronics from water intrusion caused by condensation or deck spray.

Stainless Steel Fasteners

All external hardware uses stainless steel fixings that resist corrosion in marine environments.

Acrylic-Coated Circuit Boards

The internal circuit boards are protected with an acrylic coating that improves corrosion resistance and long-term durability.

Together, these protective features allow the charger to operate reliably in demanding locations such as engine rooms, electrical cabinets, and battery compartments.

Universal 90–265V AC Input for Global Operation

Marine vessels often travel between regions with different shore power standards. Some ports supply 120V AC power while others provide 230V systems.

The Victron Energy Centaur 24V 30A Battery Charger eliminates the need for manual adjustments by supporting a universal input voltage range.

The charger automatically operates with:

• 90–265V AC input
• 50Hz or 60Hz power systems

This auto-ranging capability makes the charger ideal for vessels operating internationally or in regions with varying electrical standards.

Three Independent Charging Outputs

Modern marine electrical systems often rely on multiple battery banks to support different onboard systems.

Typical installations include:

• engine start batteries
• house battery banks for onboard electronics
• auxiliary batteries for navigation or communication equipment

The Victron Energy Centaur 24V 30A Battery Charger features three isolated outputs, allowing three battery banks to charge simultaneously.

Each output can supply the full rated charging current, providing flexibility when designing complex electrical systems.

Benefits of isolated outputs include:

• preventing electrical interference between battery banks
• improving charging efficiency
• simplifying installation of multi-battery systems
• increasing overall system reliability

Intelligent Three-Stage Charging

Proper battery charging is essential for maximizing battery lifespan and maintaining reliable electrical systems.

The Centaur charger uses a fully automatic three-stage charging system to ensure batteries reach full capacity without excessive stress.

Bulk Stage

During the bulk phase, the charger delivers maximum current to rapidly replenish depleted batteries.

This stage continues until output current drops to approximately 70% of the rated amperage.

Absorption Stage

Once the bulk phase is complete, the charger enters the absorption stage for approximately four hours. This stage safely completes the charging cycle.

Float Stage

After absorption, the charger switches to float mode, maintaining the battery at full charge without overcharging it.

This stage is particularly useful when vessels remain connected to shore power for extended periods.

Temperature-Compensated Charging

Battery charging requirements vary depending on temperature. High temperatures increase the risk of overcharging, while cold conditions may prevent batteries from reaching full capacity.

The Victron Energy Centaur 24V 30A Battery Charger includes an internal temperature sensor that automatically adjusts the charging voltage.

Voltage compensation occurs at:

• –2 mV per °C per cell
• –1 mV per °F per cell

This ensures the batteries receive the correct charging voltage regardless of environmental conditions.

Compatible with Multiple Battery Types

Different vessels and electrical systems use different battery technologies.

The Centaur charger supports several common battery chemistries including:

• Flooded lead-acid batteries
• Gel batteries
• AGM batteries

A built-in DIP switch allows installers to select the correct charging profile based on the battery type being used.

This flexibility makes the charger easy to integrate into existing marine or mobile power systems.

Integrating with the Victron Energy Ecosystem

Many marine and mobile electrical systems combine several devices from Victron Energy to create a complete onboard power management system.

Installers commonly pair the Centaur charger with products such as:

• a Victron Energy MultiPlus inverter charger
• a Victron Energy MPPT solar charge controller
• a Victron Energy battery charger used to maintain battery banks
• a Victron Energy monitor to track system performance

Advanced installations may also incorporate systems like the Victron Energy Quattro or the powerful Victron Energy MultiPlus 3000 to manage onboard AC power and inverter functionality.

These integrated systems provide reliable energy management for marine and mobile applications.

Typical Applications for the Centaur 24V 30A Charger

Because of its durability and multi-bank charging capability, the Centaur charger is used in a wide range of installations.

Commercial Marine Vessels

Workboats and service vessels rely on dependable charging systems to maintain navigation electronics and onboard equipment.

Military and Government Craft

Government vessels require rugged electrical systems capable of operating in extreme environments.

Recreational Boats and Yachts

Boat owners depend on reliable battery charging to power lighting, navigation systems, and onboard appliances.

Mobile and Industrial Electrical Systems

The charger can also be used in industrial vehicles, service trucks, and other mobile platforms that operate with 24-volt battery systems.
