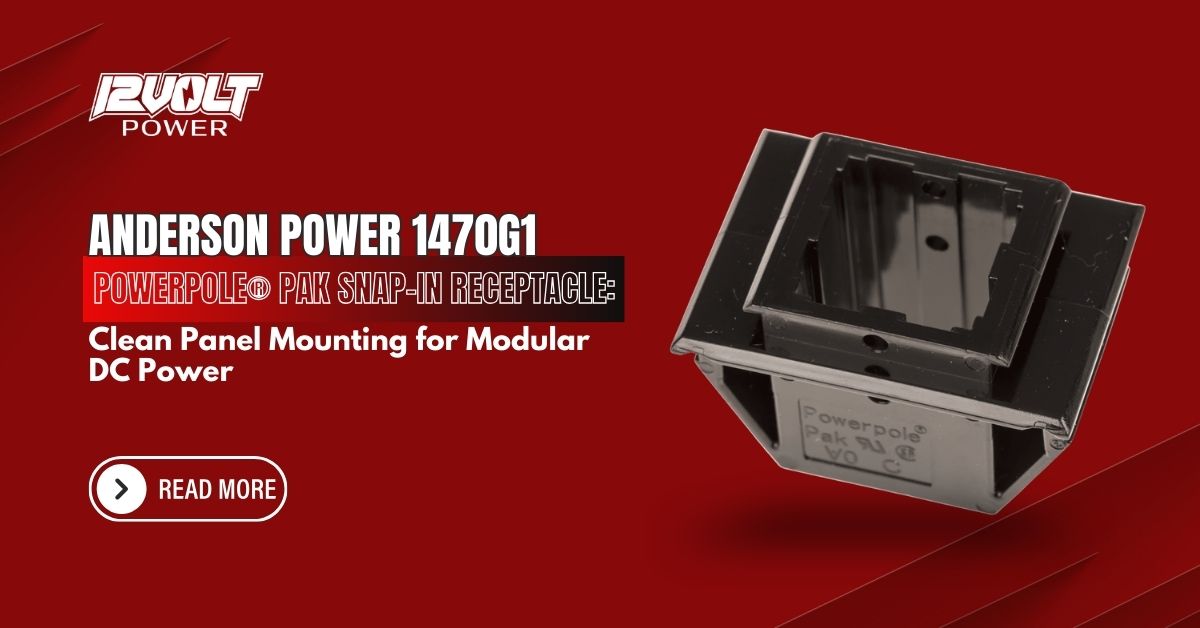

Anderson Power 1470G1 Powerpole® PAK Snap-In Receptacle: Clean Panel Mounting for Modular DC Power

When DC power connections need to pass cleanly through panels, enclosures, or bulkheads, loose connectors aren’t enough. The Anderson Power 1470G1 Powerpole® PAK Snap-In Receptacle provides a secure, professional panel-mount solution for Powerpole PP15–PP45 series connectors, supporting 2 to 4 poles in a single snap-in housing.

Designed for flexibility, durability, and clean installation, this receptacle is ideal for mobile power systems, radio racks, battery enclosures, and custom DC distribution panels.

👉 Product page:
https://www.12voltpower.com/product/anderson-power-1470g1-bk-powerpole-chassis-mount-snap-in-receptacle-4-position/

As part of the trusted Anderson Power Products lineup, the 1470G1 is built for real-world DC power applications.

Designed for Powerpole® PP15–PP45 Series Connectors

The 1470G1 receptacle is compatible with Powerpole PP15, PP30, and PP45 housings, allowing installers to standardize on one connector format while scaling current capacity as needed.

Key compatibility features:

• Holds 2 to 4 Powerpole housings
• Accepts wire or PCB-style Powerpole connectors
• Uses retaining pins to lock housings in position
• Supports multiple keying configurations

This makes it an excellent choice for modular DC systems built around Anderson Power Poles.

Snap-In Chassis Mount for Clean Installations

The snap-in design allows the receptacle to mount directly into a panel cutout without additional brackets or fasteners.

Benefits include:

• Fast installation
• Clean, flush appearance
• Secure retention under vibration
• Easy service access from front or rear

It’s ideal for control panels, equipment racks, battery boxes, and custom enclosures.

Flexible Mating Options for Panel-to-Cable or Panel-to-Panel Connections

The 1470G1 receptacle is designed for versatility in how connections are made.

It can:

• Mate with Powerpole plug shells (with or without latches)
• Mate to another panel-mount receptacle to create a bulkhead-to-bulkhead connection
• Support both temporary and permanent DC connections

This flexibility is especially valuable in mobile and modular power systems using Anderson Power Products connectors.

Retaining Pin System for Secure Housing Alignment

Powerpole housings are secured inside the receptacle using retaining pins (not included), which:

• Lock the housing cluster in place
• Prevent movement during mating/unmating
• Ensure proper alignment of contacts

Spacer keys (long or short) can also be used when fewer than four poles are required or when specific keying is needed.

Assembly Overview (Clean, Installer-Friendly)

Assembly is straightforward and follows standard Powerpole best practices:

1. Strip the wire insulation, taking care not to damage conductors.
2. Crimp the wire into the contact using a Powerpole crimp tool (crimping is recommended over soldering for safety and reliability).
3. Assemble Powerpole housings into the desired 2–4 pole block by sliding them together until the retaining-pin hole aligns.
4. Insert the housing cluster into the snap-in receptacle and secure it with a retaining pin.
5. Insert contacts from the rear, using an insertion/extraction tool to lock each contact under the retaining spring.

Once installed, the result is a clean, secure, and serviceable panel-mounted Powerpole interface.

Ideal Applications

The Anderson Power 1470G1 is commonly used in:

• DC power distribution panels
• Ham radio and communications racks
• Battery enclosures and power walls
• Mobile power and off-grid systems
• Test benches and modular equipment

Anywhere Anderson Power Poles are used and a professional panel-mount solution is needed, this receptacle fits naturally.

Key Specifications

• Connector Type: Powerpole® PAK Snap-In Receptacle
• Compatibility: Powerpole PP15 / PP30 / PP45
• Positions: 2–4 poles
• Mounting: Snap-in chassis / panel mount
• Mating Options: Plug shells (latched or unlatched) or panel-to-panel
• Weight: 0.01 lbs
