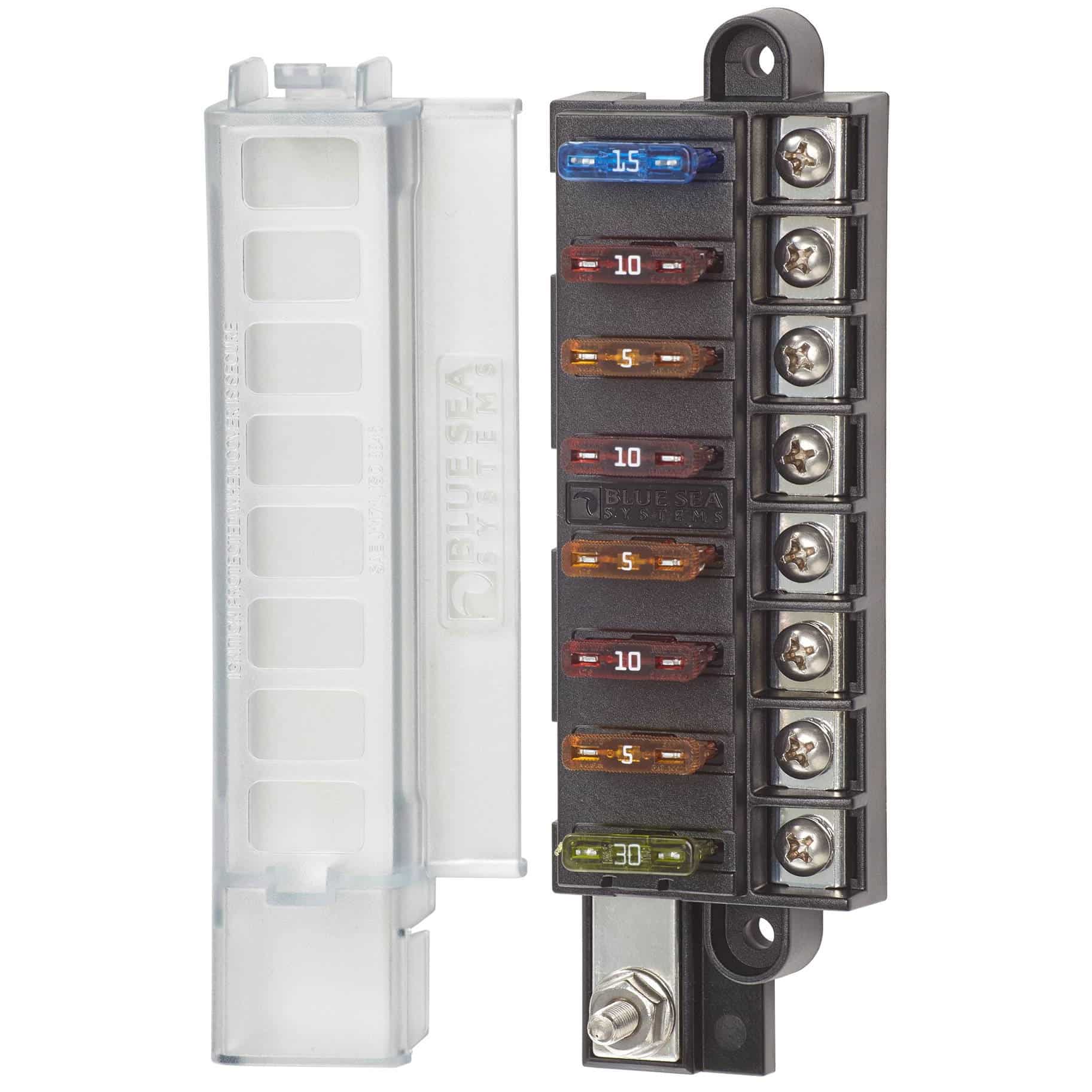

Blue Sea 5046 ST Blade Compact Fuse Blocks – 8 Circuits


Compact 8 circuit fuse block provides surface mount circuit protection for ATO/ATC fuses in a compact
footprint. The single side design allows wire entry on one side to maximize space.

SKU: 5046-BSS Categories: , , ,
Range Discount
1 - 9 $35.99
10 - 49 $34.87
50 - 99 $31.34
100 - 199 $29.87
200 + $27.89

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.

  • Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Single side design allows wire entry from one side to minimize footprint
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Includes 8 write-on circuit labels
  • Fuses sold separately
Weight 0.322 lbs

Blue Sea Systems

Component Type

Fuse Block

Fuse Type


System Voltage

12V, 24V
