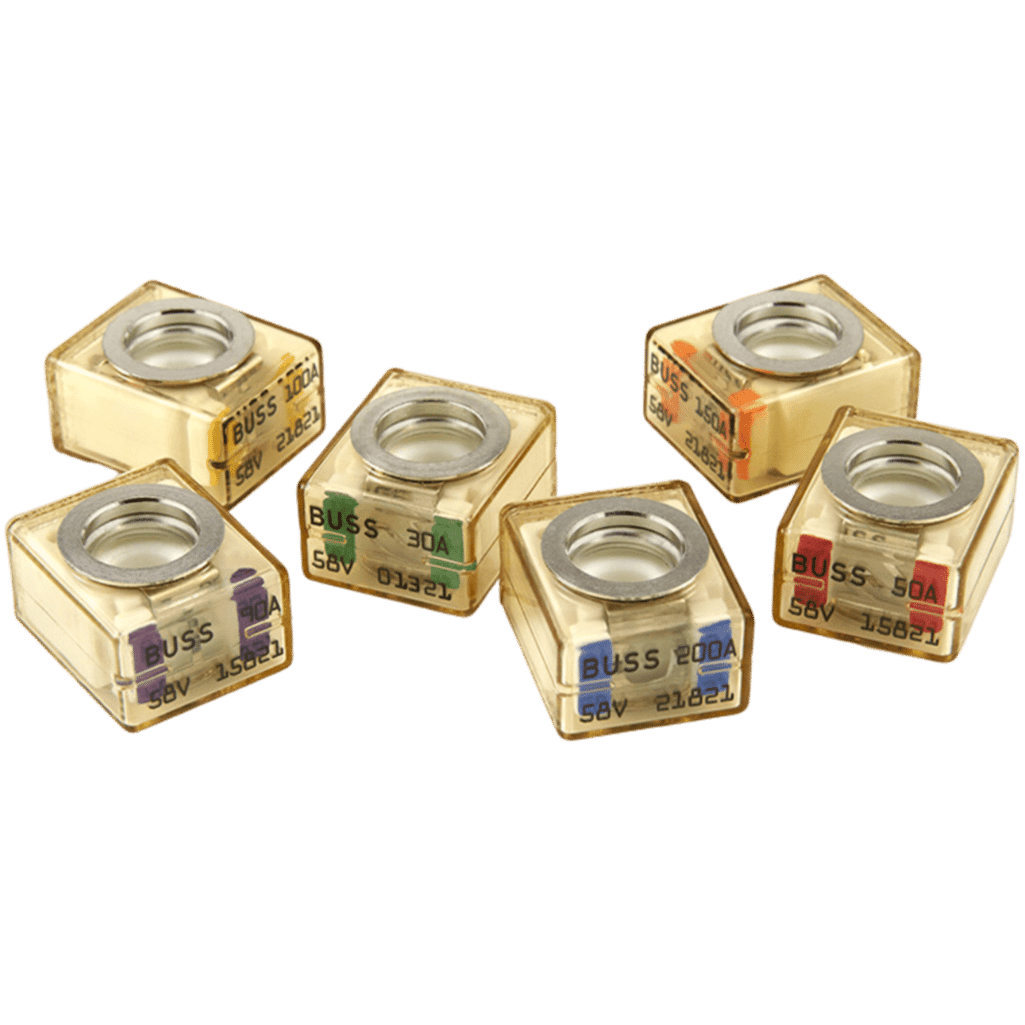

MRBF battery fuses
Eaton Bussmann MRBF Series Marine Rated Battery Fuses - 30A to 300A - Image 2

Eaton Bussmann MRBF Series Marine Rated Battery Fuses – 30A to 300A

$8.20

Designed for the most demanding environments to provide high current protection for the tightest space constraints. Suitable for main and auxiliary circuit protection such as alternator outputs, starter motor inputs and accessory circuits. The breaking capacity meets the requirements of conventional vehicle batteries and 12V, 24V and 42V electrical networks.

$8.20
$8.20
$8.20
$8.20
$8.20
$8.20
$8.20
$8.20
$8.20
$8.20
$8.20
$8.20
$8.20
$8.20
Categories: , ,

Description

Applications: Full range circuit protection for automotive and marine applications. Break in capacity meets the requirements of conventional vehicle batteries and 42V electrical networks.

Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks. Clear window for visual indication of blown condition. Color coded for each amperage.

Specifications

Specification Heading Specification Detail
Voltage Rating 58V DC Maximum
Current Ratings 30A, 40A, 50A, 60A, 75A, 80A, 90A, 100A, 125A, 150A, 175A, 200A, 250A, 300A
Ingress Protection IP66
Ignition Protected Per SAE J1171
Torque Rating Maximum 12 N • m (106 in-lbs)
Housing & Cover Material UL 94-V0 Thermoplastic

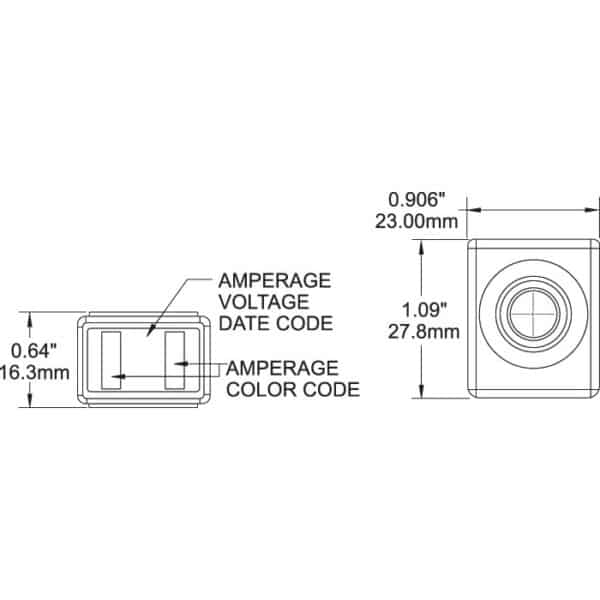

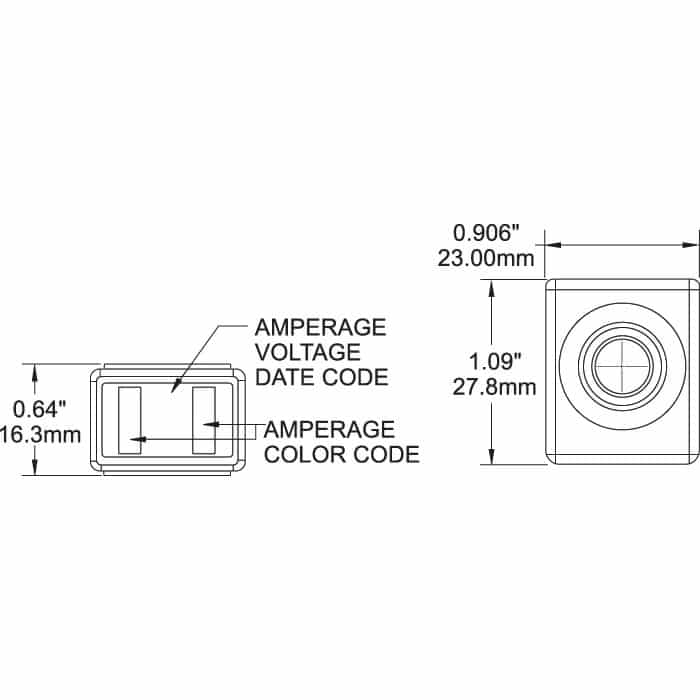

Dimensions 1.09" x 0.91" x 0.64"
Weight 0.06lbs
