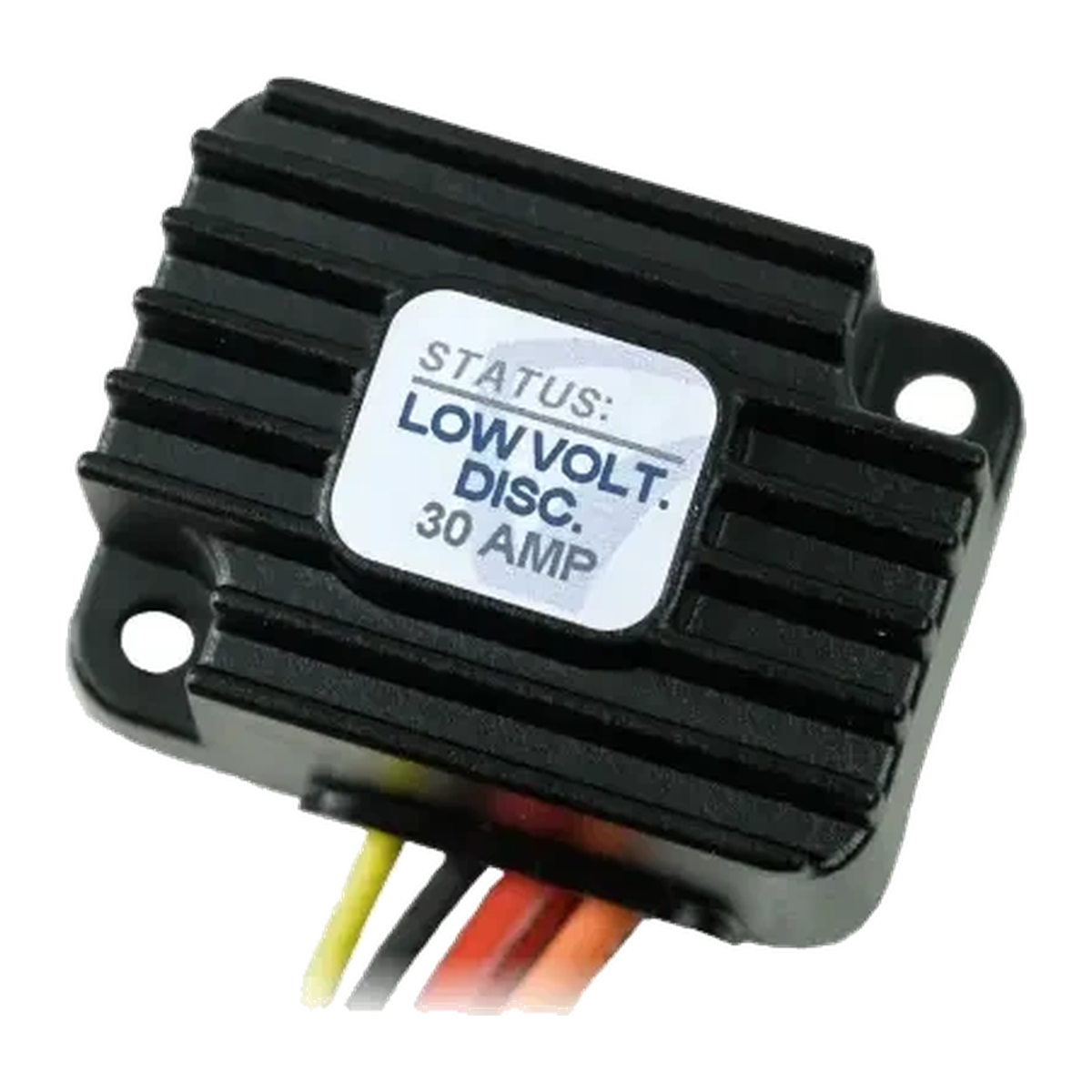

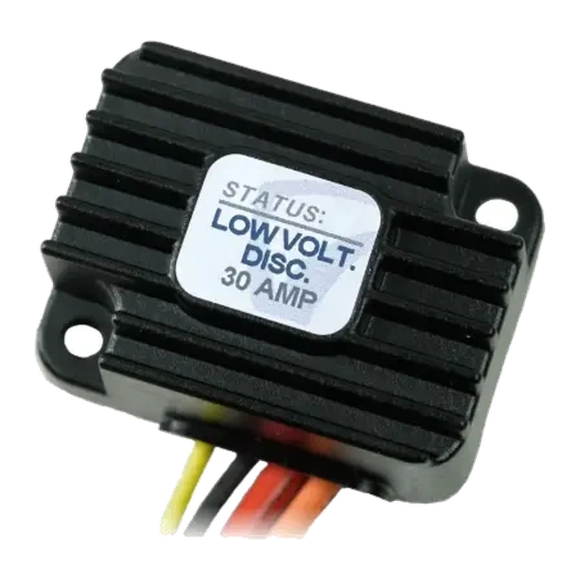

The Egis Mobile Electric 5606B PT2 Low Voltage Disconnect protects your batteries from add-on equipment. When voltage falls into the adjustable 11–12 V cut-off range it disconnects the 30 amp output after a programmable delay of 5 seconds to 8 hours, preventing dead batteries while keeping equipment running as long as possible.
It also delivers power to equipment after engine-off or end of shift until voltage reaches the configured threshold, and shuts down at 17 V to protect sensitive electronics from over-voltage. DIP switches set trigger voltages and timing, integrated fusing and thermal protection make it self-protecting, and the sealed enclosure with cross-linked flying leads installs almost anywhere.
Key Features:
- Adjustable 11–12 V under-voltage disconnect
- Programmable time delay from 5 s to 8 h
- 17 VDC over-voltage shutdown protects electronics
- 30A continuous output
- Integrated fusing plus over-current and over-temperature shutdown
- Local LED status indicator
- Sealed, high-temperature enclosure
- Cross-linked wire leads – 16" fused output, 18" control
- Compact footprint, mounts anywhere on vehicle or vessel
- Ultra-low 1.3 mA off-state draw
Specifications:
| Continuous Current | 30A |
|---|---|
| Under-Voltage Disconnect Range | 11–12 VDC |
| Time Delay Range | 5 s – 8 h (DIP switch) |
| Over-Voltage Protection | 17 VDC |
| Voltage Range | 8–18 VDC |
| Off-State Current Draw | 1.3 mA |
| Leads | 16" fused output, 18" control |
| Warranty | 4 Years |
Applications:
- Liftgates, inverters and accessory loads
- Emergency and fleet vehicle upfits
- Marine house circuits
- RV and overland auxiliary systems
Fit the Egis 5606B and stop add-on equipment from killing your batteries.
