Egis Mobile Electric 8710-1900B XD Series 500A HD Battery Switch

The Egis 8710-1900B XD Heavy Duty Battery Switch is a robust, high-current solution for managing 12V and 24V DC battery systems in demanding environments. Engineered for reliability and safety, this mechanical contactor is ideal for marine vessels, RVs, work trucks, emergency vehicles, and industrial applications. Its compact bi-stable design saves space while delivering 500A continuous current and momentary surges up to 1,500A, ensuring dependable operation for high-demand electrical systems.

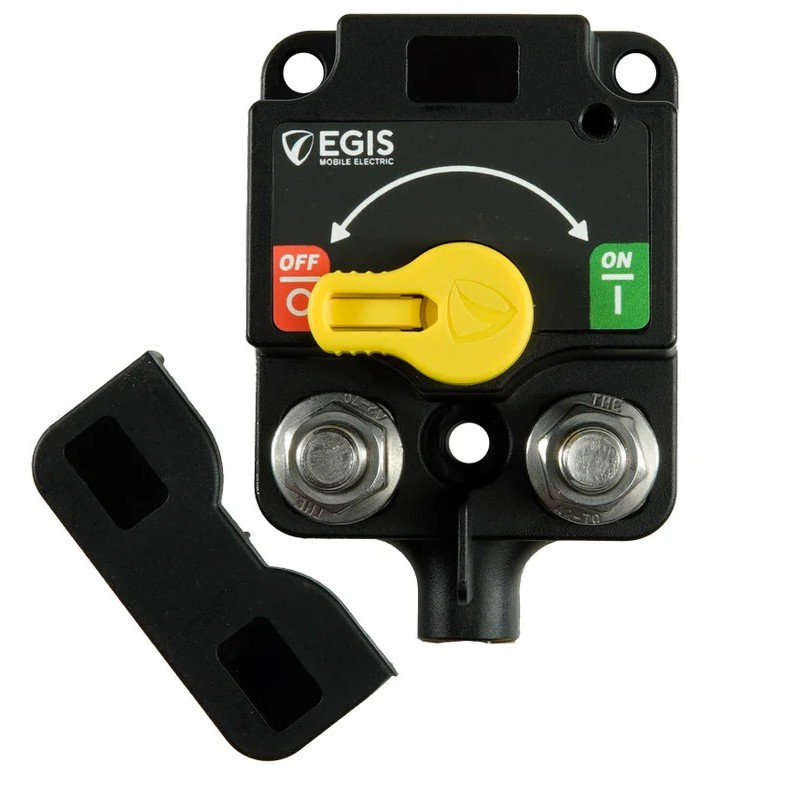

The switch features silver-alloy contacts for clean, full-voltage switching and a bright yellow manual ON/OFF knob for clear and intuitive operation. Large M10 stainless steel studs accommodate thick battery cables, while a removable terminal cover prevents accidental shorts. The IP67/IP6K9K sealed enclosure provides superior protection against water, dust, and harsh environmental conditions, making it ideal for both mobile and stationary installations.

Key Features:

• Compact, space-saving bi-stable mechanical design
• 500A continuous current, 1,500A momentary cranking capacity
• Silver-alloy contacts for reliable full-voltage switching
• Bright yellow manual ON/OFF knob for clear status indication
• M10 stainless steel studs for large cable lugs
• Removable terminal cover for short-circuit protection
• IP67/IP6K9K sealed enclosure for harsh environments

Applications:

• Marine vessels, boats, and commercial ships
• Recreational vehicles and camper conversions
• Emergency and service vehicles
• Work trucks and industrial machinery
• OEM and installer projects requiring reliable battery disconnect solutions

With its combination of high current capacity, rugged construction, and compact design, the Egis 8710-1900B XD Battery Switch is a reliable choice for safe and efficient power management in any demanding DC system.
