OPEK PS3005D 30 Amp Digital Switching Power Supply

Digital Display

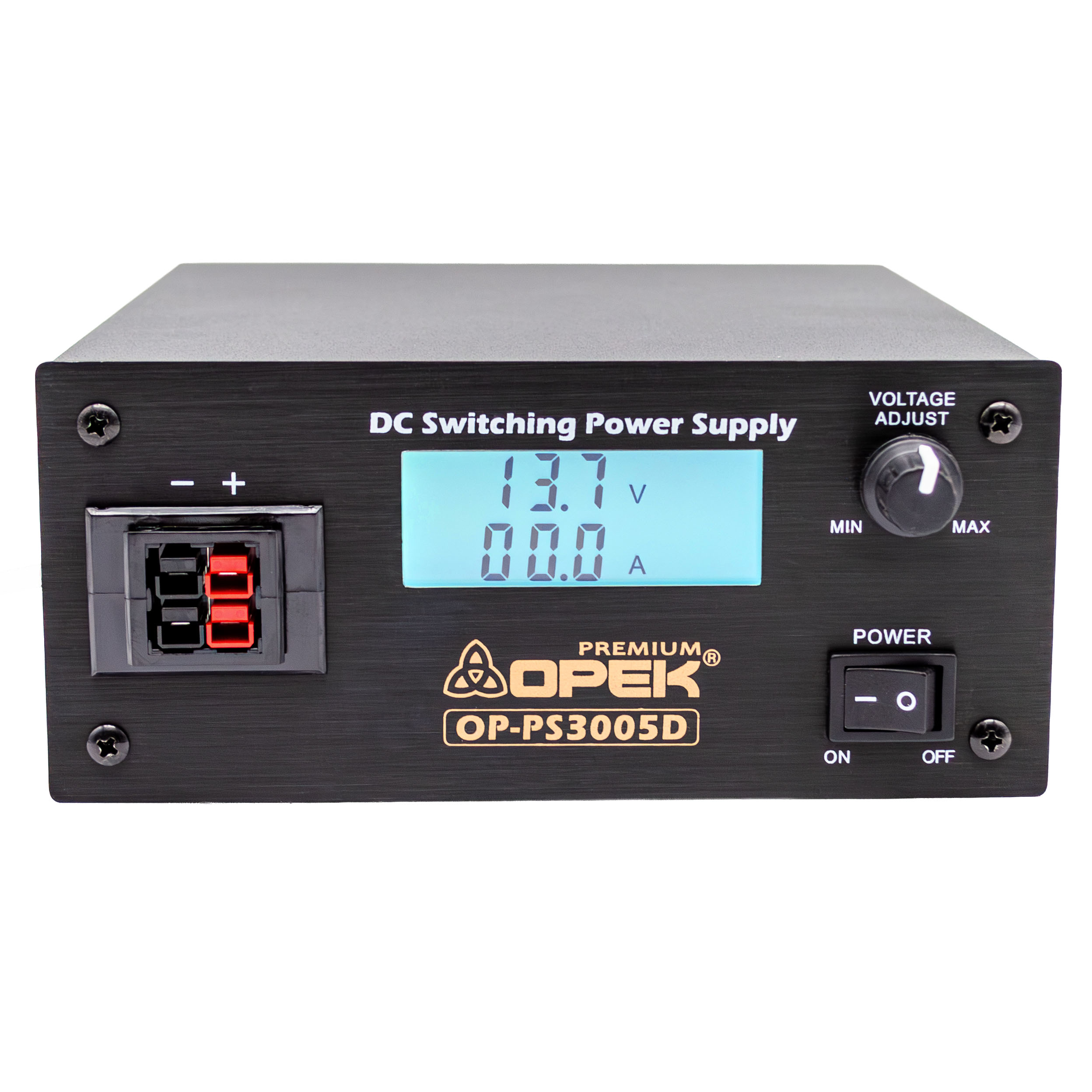

The OP-PS3005D comes standard with a blue backlit LCD display that shows DC output Volts and Amps

Variable Output Voltage

User selectable variable output from 9-15V DC. Middle detent set to 13.8V DC. Rated for 28A continuous and 30A surge at 13.8V DC.

Dual DC Power Outputs

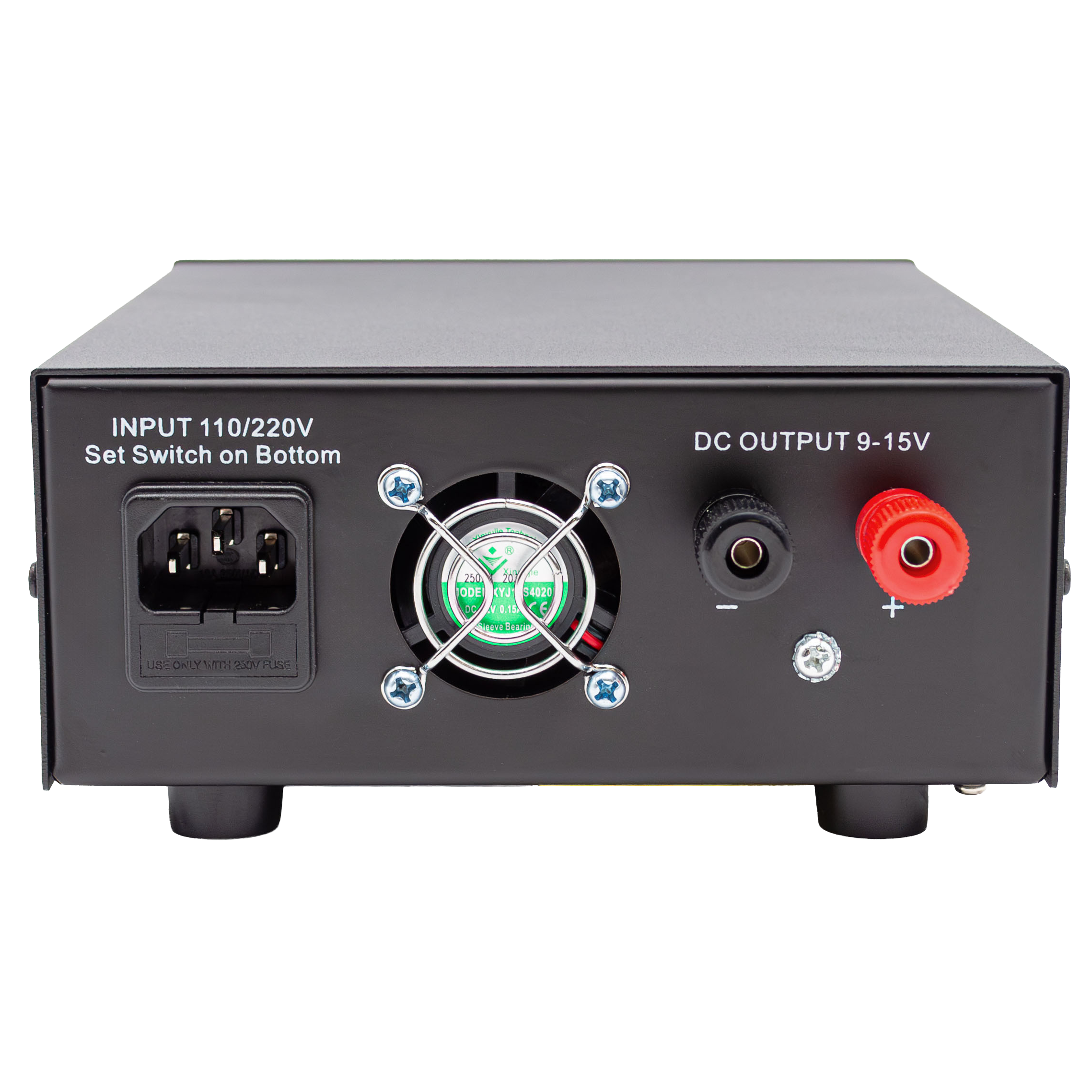

Power your radio and equipment with either the rear mounted 1/4″ binding posts or front mounted dual Powerpoles. Binding posts can also accept banana plugs.

Input Voltage

The OP-PS3005D has a universal AC input allowing for 100 to 240V AC (50/60Hz). This is selectable via the bottom mounted switch.

Cooling

The OP-PS3005D power supply is cooled by convection and forced air cooling. That is normal airflow around the power supply in combination with a temperature controlled fan to improve cooling at higher levels of use. The fan is always activated and the speed is controlled by a sensor. When the temperature rises, the fan speed increases.

Applications

• Land Mobile Radio Base Stations
• Communications Systems
• Security Systems
• Test Equipment
• Plotters
• GPS Receivers
• Automotive and Marine Displays
• DC Computers
• 12 Volt Lighting Systems
• OEM Applications

2-Year Limited Warranty

12 Volt Power is the North American distributor for OPEK Power Supplies. 12 Volt Power offers this product to be free from defects in material and workmanship for a 2-year period from date of purchase.
