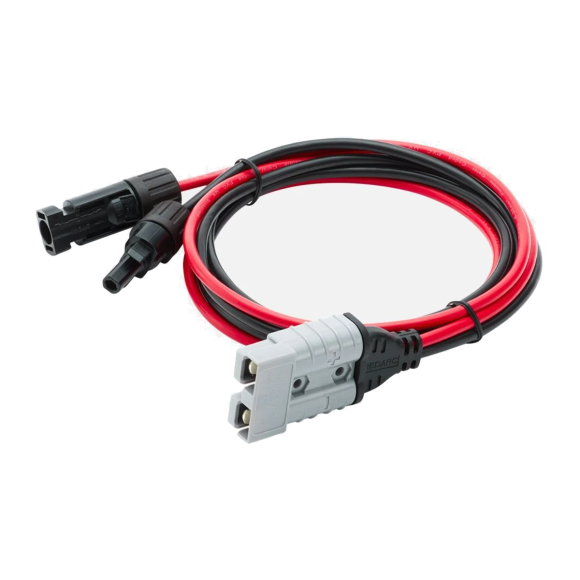

The 5FT connection cable (MC4-style to Anderson™) is used to connect the Monocrystalline Solar Panels to the SRPA range of Solar Regulators.
Installation and set-up is quick and easy thanks to genuine industry Anderson™ SB™50 connectors. There are no screw terminals and no risk of poor connectors from frayed wires or loose terminals, simply plug and play.
Specifications
| Insulation/ Sheath | UV Stabilised PVC |
|---|---|
| Voltage Rating | 50V DC max |
| Conductor | Bare Copper |
| Current Rating | 30A |
| Wire Gauge | AWG 10 (Ø2.6 mm) |
| Cable Length | 5' (±1.2") (1.5m (±30 mm) ) |
| Warranty | 2 Years |
| Connector Type | Anderson™ SB™ 50, MC4-style connector |
