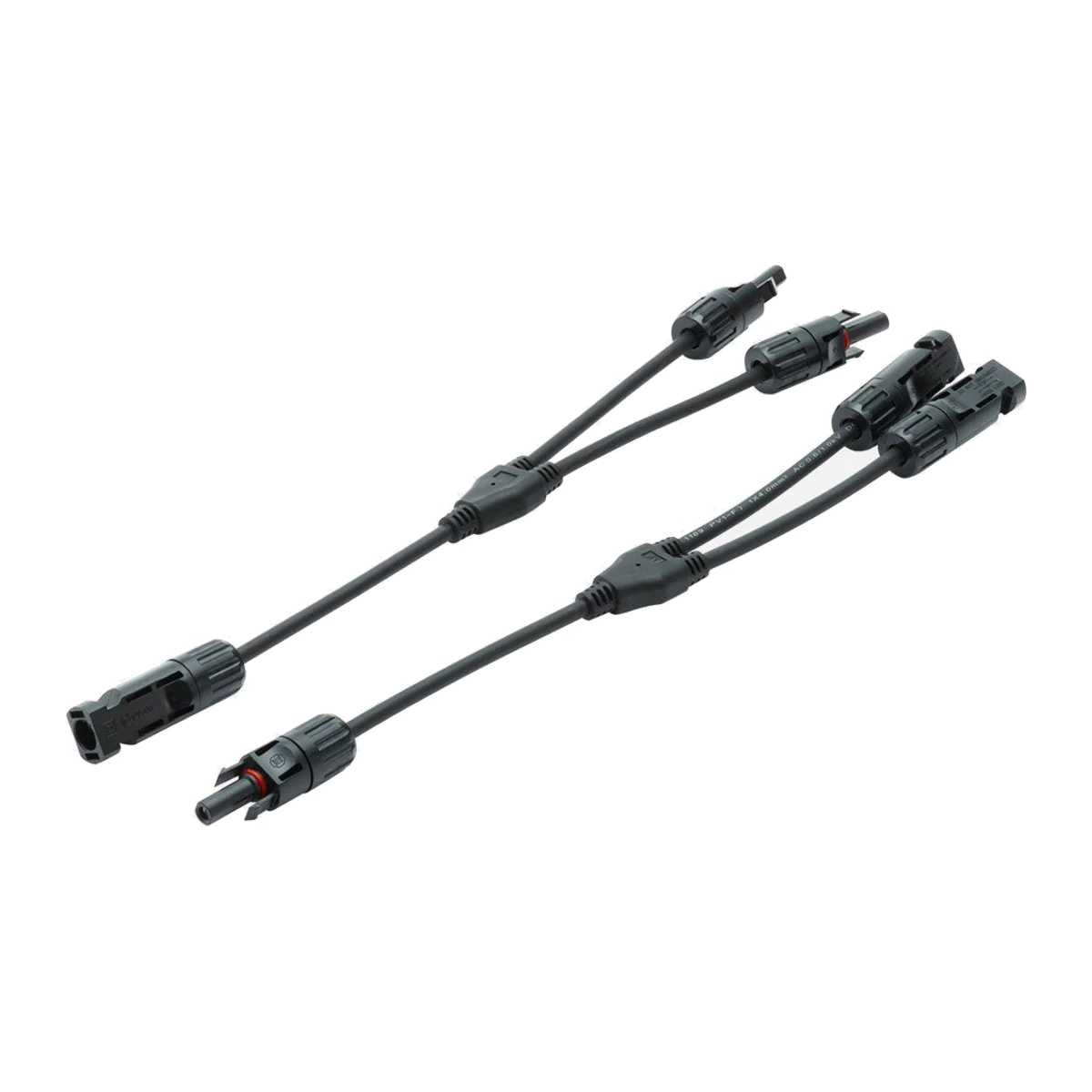

The MC4 Style Solar Connector Kit provides all the components needed to make one MC4-style connection used in the installation of REDARC Monocrystalline Solar Panels and Portable Solar Panels.
It connects Positive and Negative cables from two solar panels into two output for parallel connection to a regulator.
Features
- Compatible with MC4 style solar connectors
- Required for multiple solar panel installations
Specifications
| Insulation/ Sheath | UV Stabilised PVC |
|---|---|
| Voltage Rating | 50V DC max |
| Conductor | Tinned Copper |
| Current Rating | 30A |
| Wire Gauge | AWG 11 (Ø2.3 mm) |
| Cable Length | 11.8" (±3.9") (300 mm (±30 mm) ) |
| Warranty | 2 Years |
| Connector Type | MC4-style 'Y' connectors |
