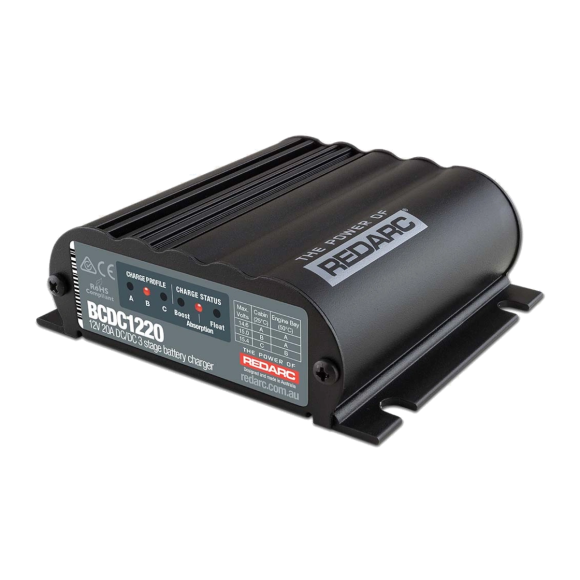

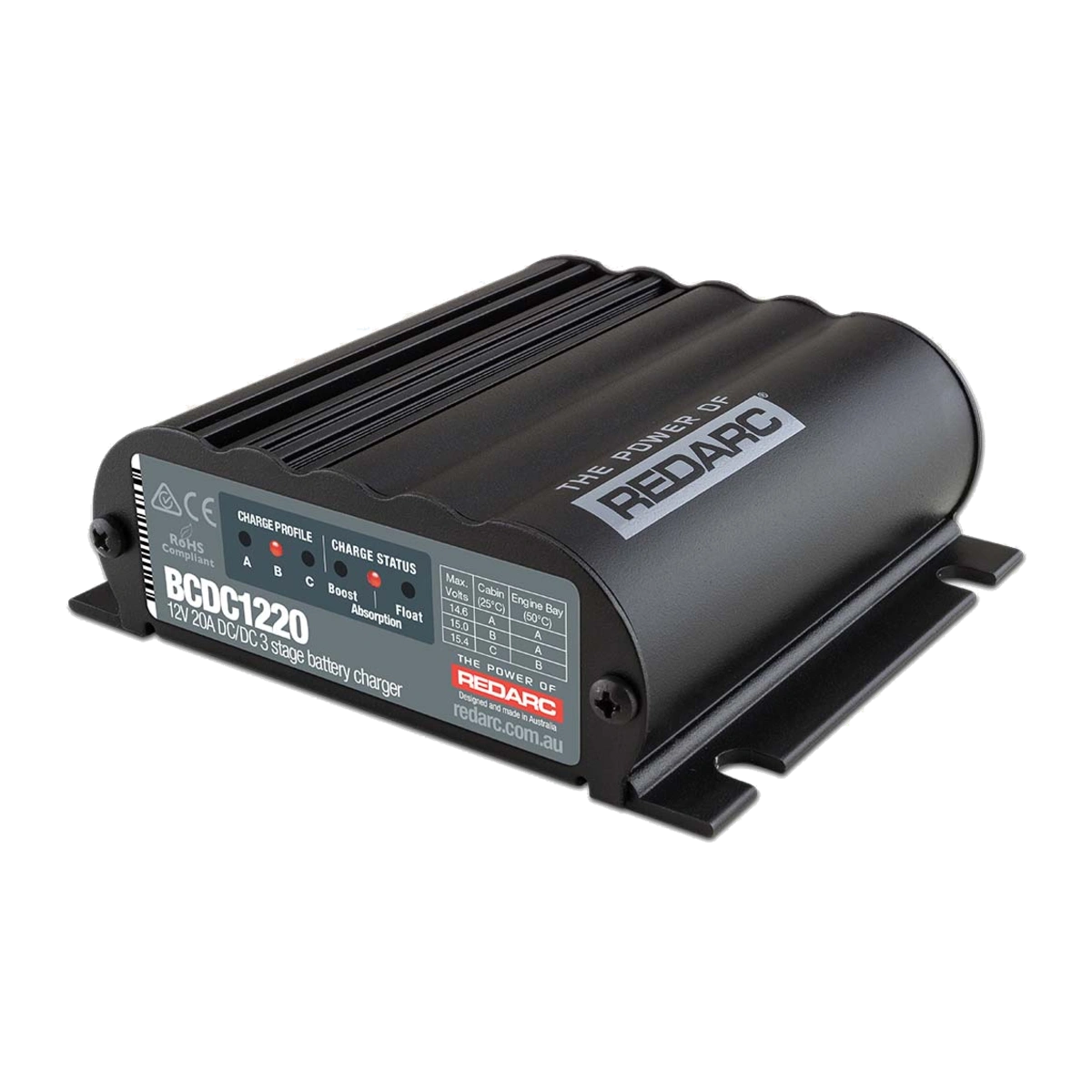

Compact multi-stage DC-DC charger for lead-acid auxiliary batteries. Engine-bay rated; not for lithium.
Key Features
- Multi-stage charging profile for AGM, Gel, Calcium, and standard lead-acid batteries
- Operates from 12V or 24V vehicles (9–32V input)
- Sealed electronics – engine bay rated
- Output current: 11A from a 12V vehicle, 20A from a 24V vehicle
- Not suitable for lithium (LiFePO4) – see BCDC Alpha or Classic series
Specifications
| Input Voltage | 9 – 32V |
|---|---|
| Output Voltage | 12V DC |
| Max. Rated Output Current | 11A (12V vehicle) / 20A (24V vehicle) |
| Continuous Rating | 12A |
| Nominal Output Power | 148W (12V vehicle) / 294W (24V vehicle) |
| Max. Charging Voltage | 15.3V |
| Battery Chemistry | AGM, Gel, Standard Lead Acid, Calcium – not suitable for LiFePO4 |
| MPPT Solar Regulator | No |
| Input Fuse | 16A – 23A (not supplied) |
| Output Fuse | 31A (not supplied) |
| Standby Current | <5mA |
| Operating Temperature | -4°F to 176°F |
| Connector Type | Bare wire |
| Weight | 0.99 lb (450 g) |
| Dimensions (L × W × H) | 3.9" × 4.7" × 1.5" (100 × 120 × 37 mm) |
| Engine Bay Install | Yes |
| Warranty | 2 Years |
