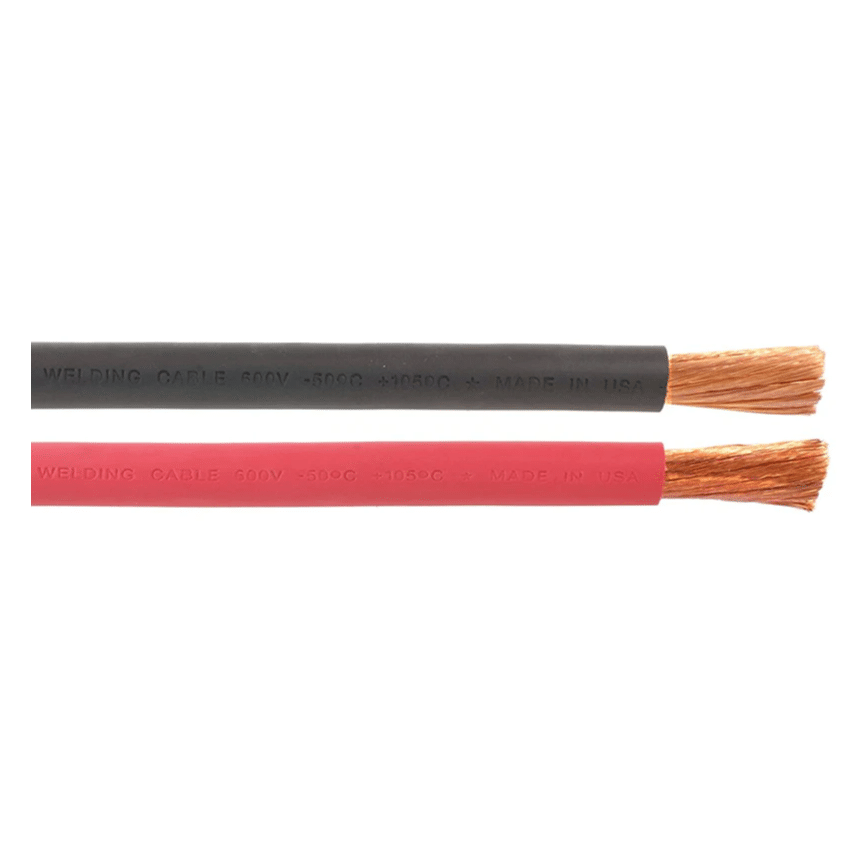

Heavy Duty Welding Cable – EPDM

$4.99 – $328.53

Heavy Duty Welding Cable offers superior flexibility and durability. EPDM insulation resists cuts, tears, abrasion, grease, oil, water and flame for optimal durability. SAE J1127 compliant and manufactured in the USA.

SKU: N/A Categories: , ,

Available Lengths

  • By the Foot, 25′, 50′, and 100′ sold as cut length coils without spool.
  • 250′ and 500′ as cut length on wood spool.

Construction

  • Rope-lay, bunch-stranded 30 AWG SAE copper conductor

Insulation & Jacket

  • Wrapped paper separator
  • Jacketed with proprietary low-smoke, halogen-free EPDM compound
  • Resistant to abrasion, battery acid, diesel fuel, engine coolant, engine oil, ethanol, extreme temperatures, flame, gasoline, power-steering fluid, and transmission fluid

Standards & Certifications

  • SAE J1127 Compliant
  • NEC Article 630 (Electric Welders)
  • Suitable for battery use per UL 558 and 583
  • REACH, RoHS, CMRT, and Prop 65 Compliant
Specification Heading Specification Detail
Voltage Rating (AC) 600V AC
Voltage Rating (DC) 60V DC
Insulation Material Jacketed with proprietary low-smoke, halogen-free EPDM compound
Temperature Range -50°C (-58°F) to 105°C (221°F)
Strand Size 30 AWG SAE copper conductor
