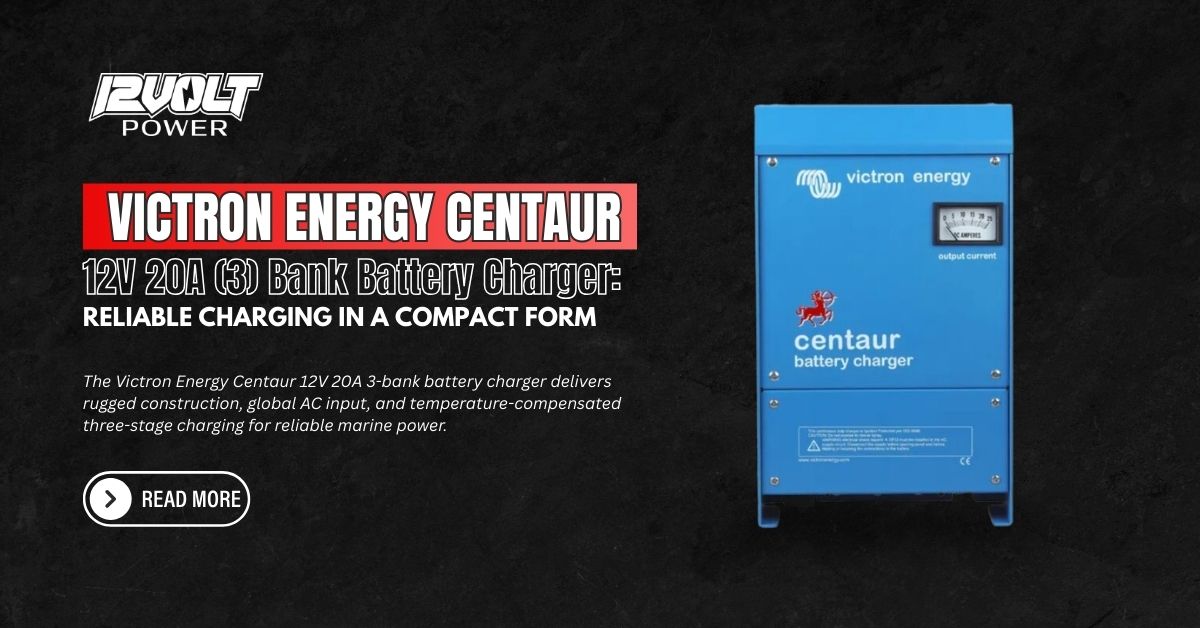

Victron Energy Centaur 12V 20A (3) Bank Battery Charger: Reliable Charging in a Compact Form

Not every marine electrical system needs massive charging current—but every system needs reliability. The Victron Energy Centaur 12V 20A (3) Bank Battery Charger is designed for smaller and mid-size battery banks that still demand professional-grade durability and consistent performance.

Built for marine environments ranging from recreational craft to commercial vessels, the Centaur 20A delivers fully automatic charging, global AC compatibility, and rugged construction in a lighter, more compact package.

👉 Product page: https://www.12voltpower.com/product/victron-cch012020000-centaur-battery-charger-20a/

As part of the proven Victron Energy Centaur lineup, this charger focuses on long-term dependability rather than unnecessary complexity.

Global Auto-Ranging AC Input for Worldwide Operation

The Centaur 12V 20A features auto-ranging AC input from 90–265V at 50/60Hz, allowing it to operate seamlessly across global shore power and generator sources without manual adjustment.

This makes it an excellent choice for:

• Boats traveling between regions
• Dockside power with fluctuating voltage
• Generator-based marine systems

This worldwide compatibility is a hallmark of professional Victron Energy battery charger design.

Three Isolated Outputs for Multi-Bank Charging

The Centaur includes three fully isolated outputs, enabling simultaneous charging of three separate battery banks. Each output is capable of delivering the full rated 20A output, ensuring balanced and consistent charging across all connected batteries.

This design supports common marine layouts such as:

• Engine start battery
• House battery bank
• Auxiliary or electronics battery

Fully Automatic Three-Stage Charging

The Centaur uses a fully automatic three-stage charging process to ensure batteries are properly charged and maintained.

Charging behavior includes:

• Bulk charging until current drops to 70% of rated output
• A timed 4-hour absorption phase
• Float mode for long-term maintenance

An internal temperature sensor automatically compensates charge voltage at –2 mV/°C (–1 mV/°F) per cell, protecting batteries in changing environmental conditions.

A DIP switch allows selection of optimized profiles for:

• Flooded lead-acid batteries
• AGM batteries
• GEL batteries

This adaptability makes the charger suitable for systems built around a Victron Energy battery of varying chemistries.

Built to Withstand Harsh Marine Conditions

The Centaur 20A is constructed with quality without compromise, using materials chosen specifically for marine durability.

Construction features include:

• Aluminum epoxy powder-coated housing
• Integrated drip shield
• Stainless steel mounting hardware
• Acrylic-coated circuit boards for corrosion resistance

These protections allow the charger to perform reliably in environments exposed to heat, humidity, vibration, and salt air.

Automatic thermal protection ensures internal components remain within safe operating limits by reducing output current if temperatures rise excessively.

Ideal for Smaller Battery Banks and Lighter Systems

With its lower current rating and reduced weight, the Centaur 12V 20A is well-suited for:

• Smaller recreational boats
• Sailboats with modest house loads
• Backup and auxiliary battery systems
• Marine electronics-focused installations

It delivers the same reliability as larger Centaur models while fitting installations where space, weight, and power requirements are more modest.

Simple, Proven Charging Without Software Complexity

The Centaur series prioritizes rock-solid automatic operation over app-based configuration. This makes it a dependable choice for users who want consistent charging without managing software, Bluetooth settings, or networked components—while still benefiting from the engineering standards of Victron Energy.

Key Specifications

• System Voltage: 12V
• Output Current: 20A total
• Outputs: 3 isolated outputs (each capable of full output)
• AC Input: 90–265V AC / 50–60Hz
• Charging Stages: Automatic 3-stage
• Battery Types: Flooded, AGM, GEL
• Weight: 10.47 lbs
