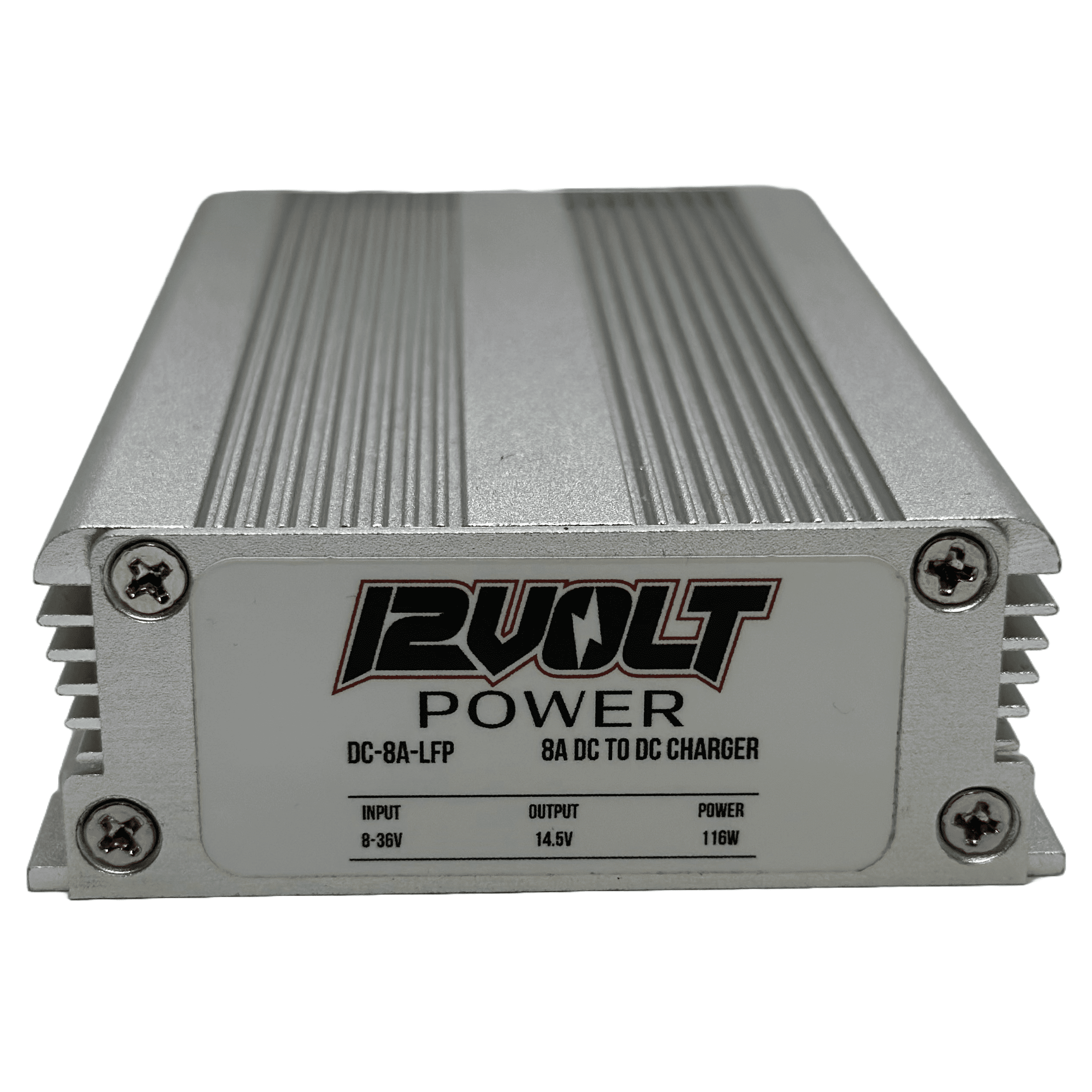

12 Volt Power DC-8A-LFP 2/4/8A Variable DC-DC Charger for 12V LiFePO4 Batteries
$69.99
Keep your 12V LiFePO4 batteries fully charged with your vehicles 12V charging system. User selectable 2/4/8A charging current accommodates batteries ranging from 3Ah up to 70Ah+. Wide input range accepts 8-36V DC. Preprogrammed for 14.5V DC output.
Description
Wide Input Range: The DC-8A-LFP’s wide input voltage range allows for multiple power sources. Easily power this device from a 12 or 24V system including vehicle alternators, batteries, and power supplies.

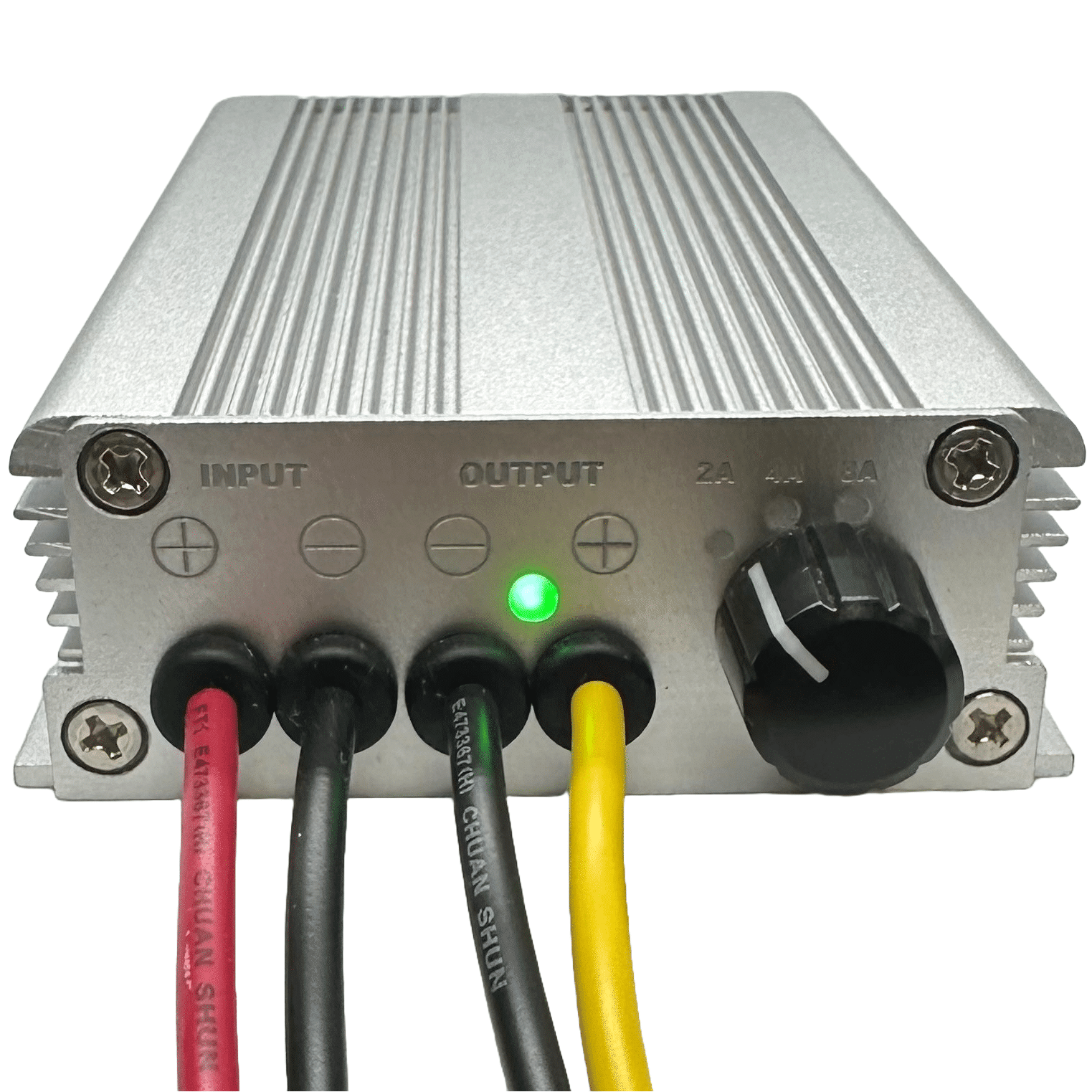

User Selectable 2/4/8A Output: Chose from 2/4/8A charging current to accommodate multiple battery capacities.
- 2A – For 3Ah or larger
- 4A – For 10Ah or larger
- 8A – For 30Ah or larger
2-Stage Charging Profile: 2-Stage CC/CV charging profile is designed specifically for 12V LiFePO4 batteries. Ideal for use with 12V Bioenno Power batteries.
- Constant Current – LED color is RED while the charger is in the constant current (CC) mode.
- Constant Voltage – LED will change to GREEN when changing to constant voltage (CV) mode.
Specifications
| Specification Heading | Specification Detail |
| Input Voltage Range | 8-36V DC |
| Output Voltage | 14.5V DC |
| Charging Current | 2/4/8A Selectable |
| Power Rating | 116W |
| Battery Chemistry | 12V LiFePO4 |
| Efficiency | Up to 96% |
| Connector | Anderson Powerpole 15-45 Series |
| Cable Length | 15in |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Over Temperature Protection | Yes |
| Output Short Circuit Protection | Yes |
| Ingress Protection | IP68 Waterproof Sealed |
| Operating Temperature Range | -40 to 185 °F |
| Dimensions | 5.4 x 3.0 x 1.5 in |
| Weight | 1.15lbs |
| Warranty | 1 Year |
