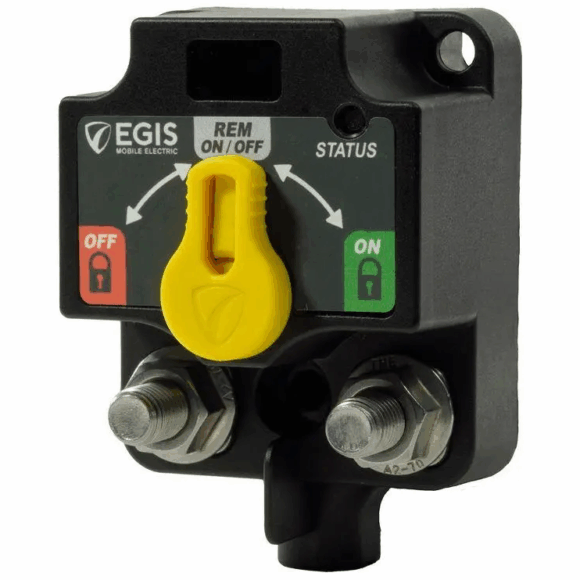

Egis Mobile Electric 8710-1700B XD Series Low Voltage Disconnect

The Egis 8710-1700B XD Programmable Low Voltage Disconnect (LVD) is a robust and versatile solution for protecting 12V and 24V DC battery systems from deep discharge. Designed for reliability in demanding environments, this LVD  is perfect for marine vessels, RVs, work trucks, emergency vehicles, and other mobile or stationary power systems. Its bi-stable solenoid design provides a compact, space-saving solution while maintaining high performance, handling 500A continuous current and surges up to 1,500A.

Equipped with a manual override knob and tinned control wires, the LVD simplifies installation and allows convenient direct control. Its sealed IP67/IP6K9K enclosure ensures long-lasting durability against dust, water, and harsh environmental conditions. The LVD is fully programmable via dip switches, offering adjustable voltage set-points and 0–120 second off-delay, allowing tailored battery protection to match system requirements. Its wire-for-wire compatibility with Blue Sea ML-series products makes it an easy upgrade or replacement for existing installations.

Key Features:

• Bi-stable solenoid design for space-saving installation
• 500A continuous current, 1,500A surge capacity
• Manual override knob for direct control
• Tinned control wires for corrosion resistance
• IP67/IP6K9K sealed enclosure for harsh environments
• Programmable voltage set-points and 0–120 second off-delay
• Wire-for-wire compatible with Blue Sea ML-series switches

Applications:

• Marine vessels: boats, yachts, commercial ships
• Recreational vehicles and camper conversions
• Emergency and service vehicles
• Work trucks and industrial vehicles
• OEM and installer projects requiring reliable battery protection

With high current capacity, programmable protection, and rugged construction, the Egis 8710-1700B XD LVD ensures safe, reliable operation of critical DC power systems in demanding applications.
