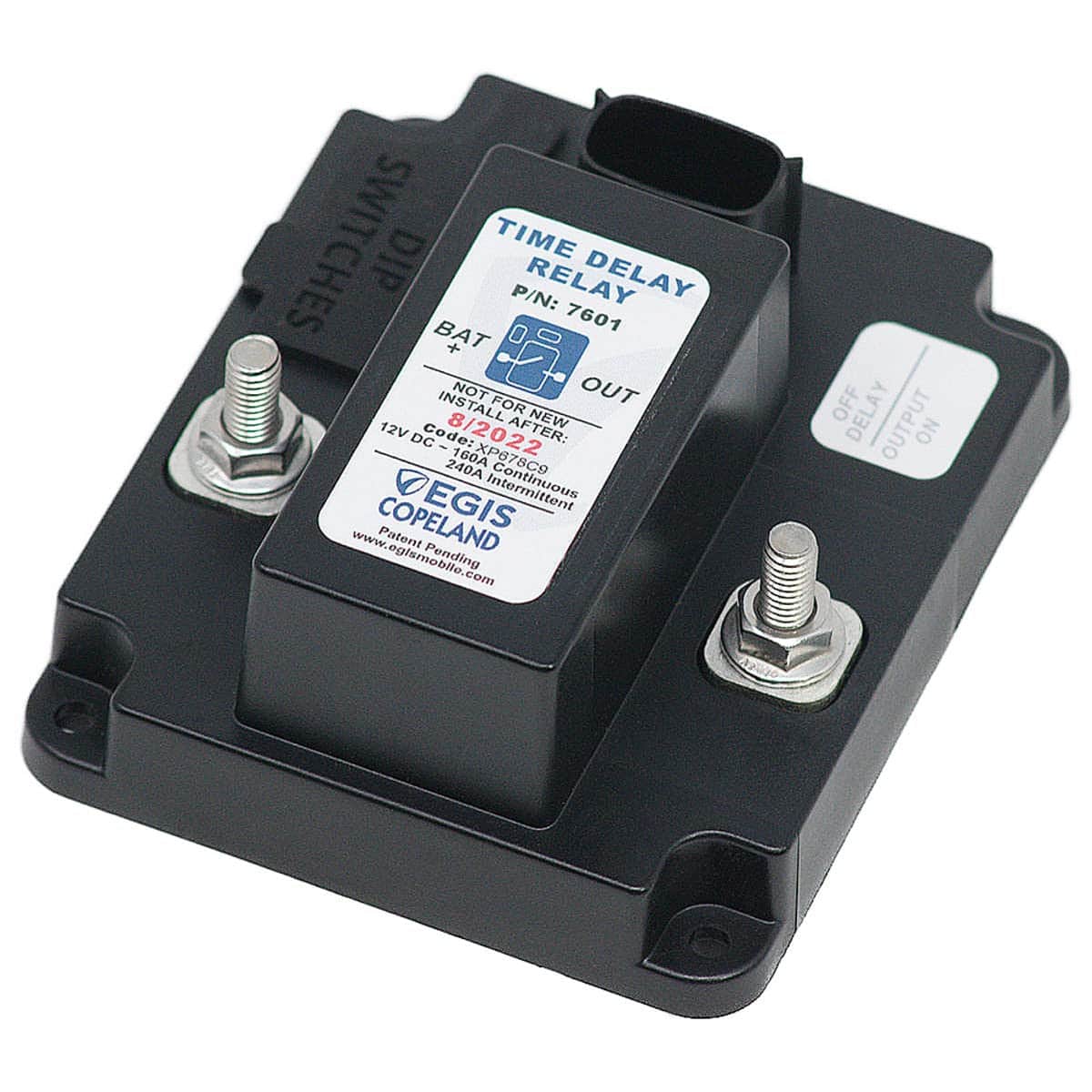

Egis Mobile Electric 7601B 160A Time Delay Relay (TDR)


Prevents add-on equipment from draining batteries, maximizing operational readiness by eliminating dead batteries. Continuous amp rating of 160A.

Ultra-Low Power Draw eliminates vehicle downtime due to dead batteries. Lowest off-state current draw (1.3 mA).

Simple & Robust Installation:   Sealed plug with optional long wire leads. Single timer/relay device reduces installation time, overall costs and points of potential failure. Optional output bus bar easily connects RT or CT Fuse Block families.

Adjustable OFF Time Delay: 15 minutes to 16 hours + 5 sec test mode

Bullet-proof Construction: Sealed unit, high temperature materials allow mounting anywhere on vehicle. Integrated thermal overload protection

Start Isolation / Kill Switch control input option for service technicians, emergency OFF, or protecting sensitive add-on equipment from engine cranking voltage fluctuation.

Flexible Control Options via Ignition Key, alternator voltage sense, or both.


Weight 0.7 lbs
Dimensions 4 × 3.36 × 1.66 in

Egis Mobile Electric

Component Type

Battery Disconnect
