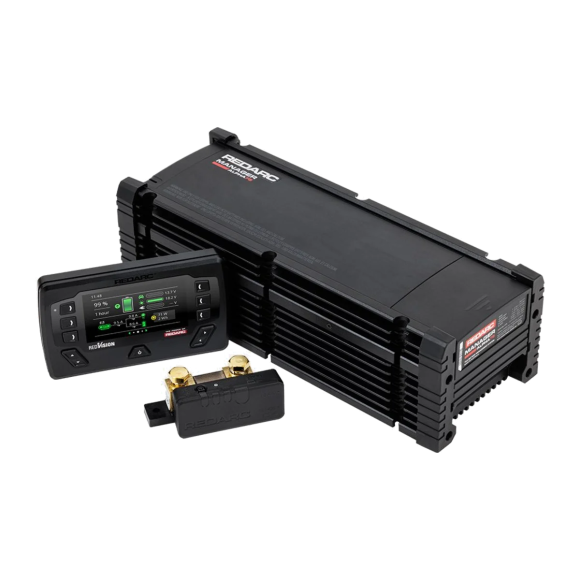

Perfect for charging auxiliary batteries used in recreational vehicles, trucks and camper trailers, the Manager Alpha75 is a complete battery management system. With a combination of DC, AC and solar charging, achieve the best charge for your secondary battery. Effortlessly power high demand appliances, so no matter where your adventures take you the power is always in your hands.
Charge
the Manager Alpha75 battery management system is capable of delivering 75A of charge from a combination of available power sources including vehicle (DC), shore (AC) and solar. As the next generation of REDARC’s trusted battery management technology, you’ve got power on hand to charge your batteries faster than you can drain them. The Manager Alpha's built in Green Power Priority™ will prioritise solar input, minimising the load on your alternator and saving fuel.
No matter whether you’re driving, plugged in at camp or soaking up the sun, run everything from induction cooktops to fridges and air conditioners.
At up to 55% smaller and 28% lighter than competing systems that require multiple parts to deliver the same features, the Manager Alpha range maximises your charge capacity while still leaving room for adventure essentials.
The Manager Alpha75 is able to use excess solar power to keep your start battery charged or bring it back to life in the event of a flat battery with Start Battery Charge and Recovery modes.
Monitor
Featuring RedVision technology and Bluetooth® compatibility, keep on top of your charge and battery level information in real time. The included RedVision Pro Display allows you to view state of charge, remaining charge and current flow information and at up to five times more accurate than the leading competitor, you can be sure that “5 hours left” means “5 hours left”.
Incorporating latest Bluetooth® 5.1 technology, the Smart Battery Monitor delivers reliability over distances up to 42m so you can stay connected anywhere at camp.
Built Tough
The Manager Alpha has been tested to the toughest vibration standards in the world and is always ready for adventure. Able to keep charging in the frigid extremes of the highlands or the scorching heat of the outback, it’s made in Australia, so you know it won’t let you down.
Features
- Simultaneous 75A charging from DC, AC and solar power
- Up to 55% smaller and 20% lighter than comparable systems
- Start battery back charge capability
- RedVision compatibility
- Bluetooth® 5.1 technology
- 5 times more accurate monitoring than competitors
Not Sure Which Model Is Right For You?
Compare the features side by side to find the perfect match for your power needs.
Specifications
| Nominal Voltage | 12V |
|---|---|
| Current Measurement Range | ± 500A |
| Start Battery Input Voltage Range | 9-32VDC |
| Solar Input Voltage Range | 9-48VDC | To prevent damage to the Manager, the maximum voltage of the solar array must be less than 48 V while the panels are at the lowest temperature that they will be exposed to. |
| Nominal Output Voltage | 12V |
| Compatible Battery Types | Gel, AGM, Calcium, Standard Lead Acid, Lithium |
| Nominal Current Rating | 75A |
| AC Input Voltage Range | 95 – 264 VAC rms / 45 – 65 Hz |
| Operating Temperature | –4°F to 140°F |
| Weight | 13.25lbs (6.0kg) |
| Height | 4.72” (120mm) |
| Width | 6.06” (154mm) |
| Depth | length | 15.75” (400mm) |
| Warranty | 2 Years |
